4-Port Broadband Router
TW100-S4W1CA (Version G1.0R)

Enjoy Fast Ethernet networking speeds
Instantly recognizes other devices with Universal Plug and Play
Advanced firewall protection
Secure remote management

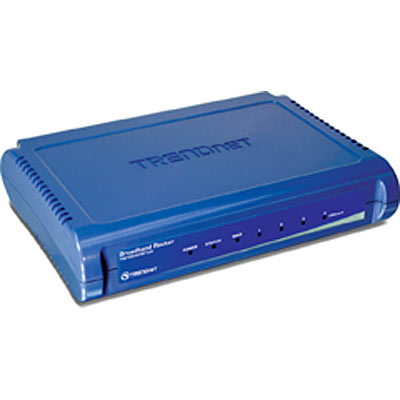

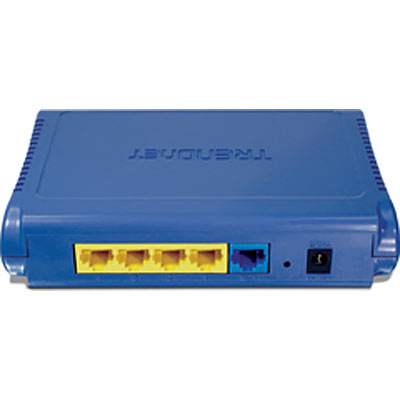

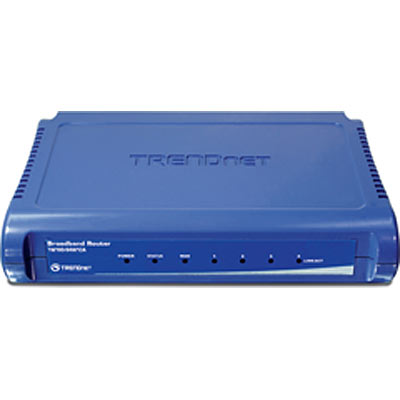

Click on image to enlarge

TW100-S4W1CA 4-port Cable/DSL Broadband router provides the easiest and securest way to share your high-speed Cable/xDSL Internet connection. It has four 10/100Mbps half/full duplex switch ports that directly connect to workstations or uplink to another hub or switch. The TW100-S4W1CA also functions as a firewall for your PC, protecting your computer from hackers. It allows up to 253 users to access the Internet using a single ISP account. By sharing just one TW100-S4W1CA, one IP address, and one Cable/xDSL modem, dozens of network users can surf the Internet simultaneously. TRENDnet´s Cable/DSL Modem Internet Station is a feature-rich product that provides cost-effective functionality and an easy configuration.

Supports Cable/DSL Modem with Dynamic IP, Fixed IP, PPPoE and PPTP Connection Types
Provides NAT (Network Address Port Translation) Firewall
Supports Virtual Servers (Port Forwarding) and DMZ
Supports Client Filtering by Date/Time (10 Entries and Special Applications Filter (10 Entries)
Supports MAC Address Control to Allow or Deny Access (32 Entries)
Supports DNS (Domain Name System) Account for Server Mapping and Dynamic DNS Service
Supports IPSec and PPTP VPN Pass-Through (when each VPN client connects to a different VPN endpoint)
Supports UPnP (Universal Plug & Play)
Easy Web Browser Configuration and Remote Management
Flash Memory for Firmware Upgrade and Save/Restore Router Configuration
Multiple VPN Pass-through sessions for IPSec, PPTP and L2TP
5-year limited warranty

Hardware
Standards	IEEE 802.3 10Base-T Ethernet; IEEE 802.3u 100Base-TX Fast Ethernet
Network Protocols	TCP/IP, NAT, PPPoE, UPnP, HTTP, DHCP Server/Client, SNTP
WAN	1 x 10/100Mbps Port (Internet)
LAN	4 x 10/100Mbps Auto-MDIX Ports
Cabling	Ethernet: Cat. 3, 4, 5, UTP EIA/ITA-568 100 Ohms, 100meters max Fast Ethernet: Cat. 5, UTP EIA/TIA-568 100 Ohms, 100meters max
Data Transfer Rate	Ethernet : 10Mbps/20Mbps (Half-Duplex/Full-Duplex) Fast Ethernet: 100Mbps/200Mbps (Half-Duplex/Full-Duplex)
LED Indicator	Power, WAN, Link/Act, LAN ports
Dimension	154 x 110 x 33mm (6 x 4.3 x 1.3 inches)
Weight	225g (8 oz)
Temperature	0° ~ 55°C ( 32° ~ 131°F)
Humidity	95% (Non-Condensing)
Power Adapter	5V DC, 800mA
Certification	FCC & CE
Router
Connection Type	Dynamic IP, Static (Fixed) IP, PPPoE, PPTP
Firewall	NAT, IP / MAC Address Filter, Domain / URL Blocking, Scheduling, UPnP
VPN	IPSec, PPTP pass-through
Management	Web Browser Configuration & Remote Management

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

View Emulator

Package Contents

TW100-S4W1CA
Multi-Language Quick Installation Guide
User’s Guide CD-ROM
RJ-45 Cable (1.5m/5 ft)
Power Adapter
