N300 Wireless Easy-N-Upgrader
TEW-637AP (Version v2.0R)
  • Don't throw away your existing wired or wireless router, upgrade it to high speed wireless n
  • No setup required-just plug it into your existing router
  • Enjoy up to 12x the speed and 4x the coverage of wireless g
  • Secure Wireless Protected Setup (WPS) at the touch of a button


 DISCONTINUED PRODUCT
The TEW-637AP (Version v2.0R) has been discontinued.  It has been replaced by the TEW-637AP (Version v3.0R). For a list of discontinued products, click here.

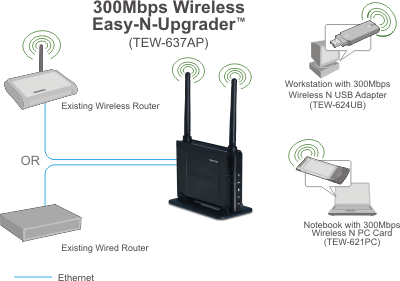

The N300 Wireless Easy-N-Upgrader™ upgrades your old, perfectly functioning router, to high speed wireless n. Enjoy up to 12 times the speed and 4 times the coverage of a wireless g network

Eliminate wireless dead spots, seamlessly surf the Internet and help the environment by not throwing away your old router.

The compact 300Mbps Wireless Easy-N-UpgraderTM is designed around ease of use, performance and environmental friendliness. The latest in wireless encryption ensures wireless security. Advanced Multiple Input Multiple Output (MIMO) antenna technology eliminates wireless dead spots. Wireless Protected Setup (WPS) lets you integrate other WPS devices into your network quickly.


*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.



RoHS Compliant
  • A smaller and faster access point solution suitable for upgrading to wireless N
  • Affordable wireless N device for easily migrating from wireless G and B networks
  • Compatible with the 2.4GHz  frequency work off of a single-band design
  • Supports Wireless Distribution System (WDS) to extend wireless network
  • Improves the data transfer speed by working with existing wireless G and B Networks
  • Compliant with IEEE 802.11n (draft) standard, IEEE 802.11g, & 802.11b standards
  • Universal wireless connectivity for seamless roaming between any 802.11-base  network
  • Up to 300Mbps data rate using 802.11n (draft) connection
  • Support for 802.11e enhancements for wireless  applications
  • Wireless security support for WEP, WPA & WPA2
  • Low Interference and high susceptibility guarantee reliable performance
  • Supports Wi-Fi Protected Setup (WPS) feature
  • Supports Windows 95/98/NT/2000/XP/2003 server/Vista, Linux and Mac OS
  • 2 antennas to support high speed performance and great coverage
  • 3 Year warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

  • Hardware
  • Standards
  • IEEE 802.11n ( draft 2.0) IEEE 802.11b, IEEE 802.11g, and 802.11e
  • Interface
  • 1 x 10/100Mbps Auto-MDIX LAN port
  • LED Indicators
  • Power, LAN, WPS, and Wireless
  • Power Supply
  • 12 V DC 0.5A external power adapter
  • Dimensions (LxWxH)
  • 120 x 26 x 88 mm (4.7 x 1.0 x 3.4 in)
  • Weight
  • 145 g (5.11oz)
  • Temperature
  • Operating: 0° to 40° C (32° ~ 104° F), Storage: -20° ~ 60°C (-4°~140°F)
  • Humidity
  • Operating: 10% ~ 85% Non-Condensing Storage: 5% ~ 90% Non-Condensing
  • Wireless
  • Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: OFDM with BPSK, QPSK and 16/64-QAM
  • WDS
  • Enable/Disable Wireless Distribution System support
  • Access Control

  • MAC Address Filter (Up to 64 entries)

  • Antenna
  • 2 x 2dBi external fixed dipole antennas
  • Frequency
  • 2.412 - 2.462 GHz (FCC) 2.412 - 2.472 GHz (ETSI)
  • Media Access Protocol
  • IEEE 802.11
  • Data Rate (Auto Fallback)
  • 802.11n: up to 300Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps, 6 Mbps 802.11b: 11Mbps, 5.5Mbps, 2Mbps, 1 Mbps
  • Output Power
  • 802.11n: 11dBm (typical) @ MCS15/HT40 802.11g: 15dBm (typical) @ 54Mbps 802.11b: 18dBm (typical) @ 11Mpbs
  • Receiving Sensitivity
  • 802.11n: -68dBm @ MCS15/HT20, -66dBm typical @ MCS15/HT40 802.11g: -72dBm (typical) @ 54Mbps 802.11b: -84dBm (typical) @ 11mpbs
  • Encryption
  • 64/128-bit WEP (HEX & ASCII), WPA/WPA2 Radius, WPA/WPA2-PSK Encryption
  • Channels
  • 1-11 (FCC) 1-13 (ETSI)
  •

    Package Contents

    • TEW-637AP
    • Multi-Language Quick Installation Guide
    • CD-ROM (Utility and User’s Guide)
    • One Cat 5 cable (0.6m/ 2 ft.)
    • Power adapter (12vDC 0.5A)
