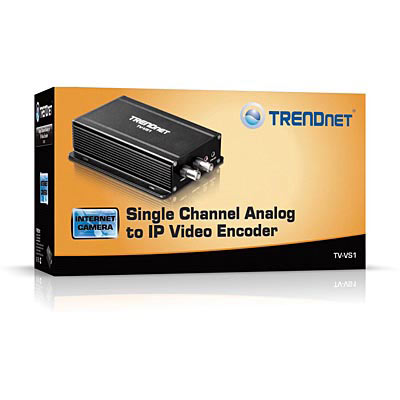

TRENDnet's Single Channel Analog to IP Video Encoder, model TV-VS1, provides advanced IP-based security camera functionality to a traditional analog CCTV camera.

Convert analog video to digital; view video over any internet connection; record video to a server; and manage motion detection recording and email alerts.

The TV-VS1 converts analog video to resolutions of up to 704 x 480 pixels (4CIF) at 30 frames per second for H.264, MPEG-4, or MJPEG compressed video. Two-way audio support facilitates audio recording and two-way communications. Remote Pan/Tilt/Zoom and Auto Patrol is supported for Pelco D compliant PTZ cameras. Advanced features include motion detection recording, email alerts, scheduled recording sessions, 3GPP support, Samba client support, Input/Output ports to network to alarm systems, date-and-time and other text overlays, mask overlays to conceal sensitive areas, an SD card slot, and digital zoom. This compact device can be mounted on most surfaces.

• 1 x 10/100Mbps Auto-MDIX RJ-45 port
• SD/SDHC card slot *
• BNC video out and video in connectors
• Audio support : built-in Audio jacks for additional 3rd party microphone and speaker
• Input/Output ports (GPIO) to network to alarm systems
• Diagnostic Power and Link LEDs
• Four installation mounting points
• 3x digital zoom
• Pelco D and Pelco P pan/tilt/zoom support: Define Auto-Patrol pan tilt with up to 32 viewing nodes
• High quality H.264, MPEG-4, and MJPEG video recording
• Resolution up to 704 x 576 pixels and up to 30 frames per second (fps)
• Stream Internet camera video to a 3GPP compatible wireless device
• Dynamic DNS support
• Images controls: brightness, saturation, contrast, Hue ,and Wide Dynamic Range Correction (WDRC)
• Time, date, and other text overlays
• Mask overlays conceal sensitive areas
• Supports TCP/IP networking, SMTP Email, HTTP, and other Internet protocols
• Recording type: continuous, schedule, or motion detection
• Record streaming video to your computer or Network Storage device with Samba support
• Three motion detection windows with just-in-time snapshot , motion detection triggered email alerts, and image upload to FTP
• Event trigger: motion detection or Input/Output signal
• Event response: email alert, instant snapshot, or video recording
• Send instant messages to Jabber client via Jabber Server
• Supports Quality of Service (QoS) with Differentiated Services Code Point (DSCP)
• Quick Universal Plug and Play (UPnP) installation
• 3-year limited warranty

*  SD/SDHC card sold separately
