Product Families » Print Servers » Wireless Print Servers » TEW-P11G

Wireless 2-Port USB/Parallel Print Server
TEW-P11G (Version 1.0R)

Turns most standalone USB and Parallel printers into a shared network resource*
The compact wireless print server allows users to place printers in the most accessible location
Provides high speed USB 2.0 and Parallel printing
Print server management through the Web browser

DISCONTINUED PRODUCT

The TEW-P11G (Version 1.0R) has been discontinued. It has been replaced by the TEW-MFP1 (Version v1.0R). For a list of discontinued products, click here.

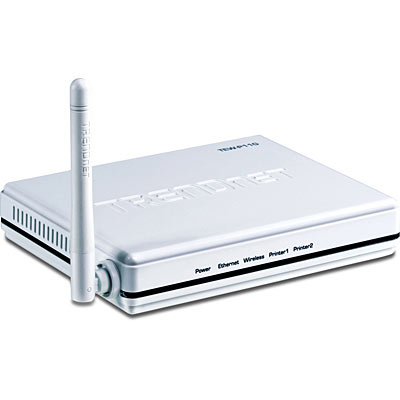

Click on image to enlarge

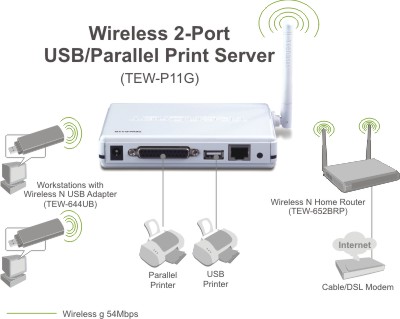

The Wireless 2-Port USB/Parallel Print Server turns most standalone USB and Parallel printers into shared wireless resources on your network.

Increase office efficiency by sharing older Parallel port printers and newer USB port printers with everyone on the Local Area Network (LAN).

Printer management is made easy with an intuitive utility application and a user-friendly configuration interface. LED indicators and bi-directional support provide a user friendly printing experience. Works with most Windows based operating systems.

Share two printers (USB and Parallel) over a Local Area Network (LAN)
Standalone device requires no host PC
Line Printer Remote (LPR) printing for Windows networking environments
The compact wireless print server allows users to place printers in the most accessible location
Supports most USB and Parallel connection type printers*
Simple setup with Windows based utility program and Web based configuration
Built-in flash memory for firmware upgrade
3-year limited warranty

Hardware
Standards	Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Printer Interface	USB 2.0, 1.1 compliant, 1 x USB Type A port, 1 x DB- 25 parallel port
LAN Port	1 x 10/100Mbps Auto-Negotiation RJ-45 port
Diagnostic LEDs	Power, Ethernet, Wireless, Printer1, Printer2
TCP/IP Protocol Supported	TCP/IP, DHCP, NetBEUI and Appletalk
Supported OS	Windows 7(32-bit)/Vista(32-bit)/2003 Server/XP/2000, Mac OS
Management	Windows based utility or Web based configuration
Power	5V DC, 2A external power adapter
Power Consumption	Max 2.5W (without a peripheral)
Dimensions	135 x 105 x 30mm (4.3 x 4.1 x 1.1 inches)
Weight	210g (7.4oz.)
Temperature	Operating: 0°C~40°C (32°F~104°F) Storage: -25°C~70°C (-4°F~158°F)
Humidity	10%~85% (non-condensing)
Wireless
Frequency	2.412 ~ 2.462 GHz (FCC) 2.412 ~ 2.472 GHz (ETSI)
Antenna	1 x 1.8dBi external fixed dipole antenna
Media Access Protocol	CSMA/CA with ACK
Module Technique	802.11b: CCK (11 and 5.5Mbps) DQPSK (2Mbps) DBSPK (1Mbps) 802.11g: OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations
Data Rate	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Security	Encryption: hardware 64/128-bit WEP (HEX/ passphrase)WPA: WPA-PSK/WPA2-PSK (AES/TKIP)
Output Power	802.11b: 17dBm (typical) 802.11g: 15dBm (typical)
Receiving Sensitivity	802.11b: -84dBm (typical) @ 11Mpbs 802.11g: -73dBm (typical) @ 54Mbps
Channels	1~ 11 (FCC), 1~13 (ETSI)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Emulator

Package Contents

TEW-P11G
Multi-Language Quick Installation Guide
CD-ROM (Utility and User’s Guide)
Power adapter (5V DC, 2A)
