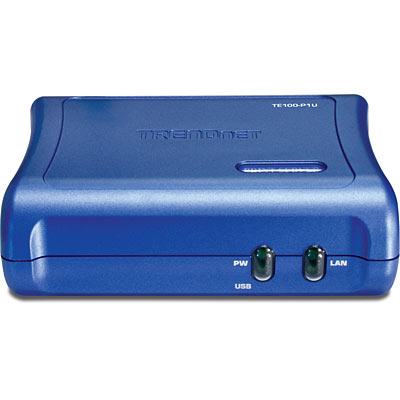

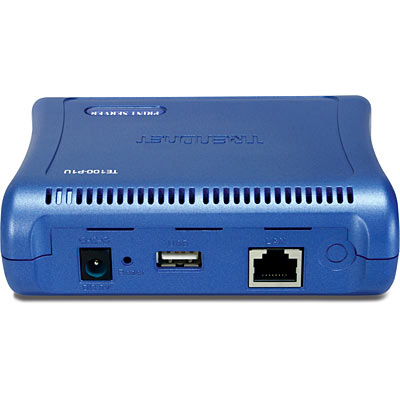

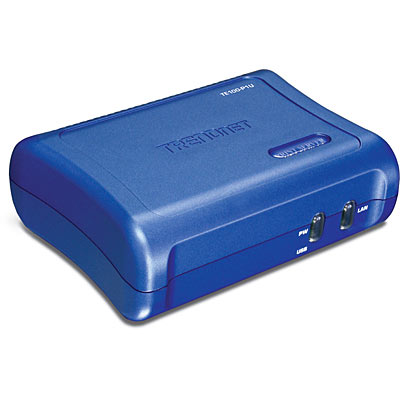

1-Port Print Server
TE100-P1U (Version v2.xR)
  • Turns a standalone USB printer into a shared network resource
  • Provides high speed USB 2.0 printing
  • Remote manages print server through web browser or utility


 DISCONTINUED PRODUCT
The TE100-P1U (Version v2.xR) has been discontinued.  It has been replaced by the TE100-P1U (Version v3.0R). For a list of discontinued products, click here.

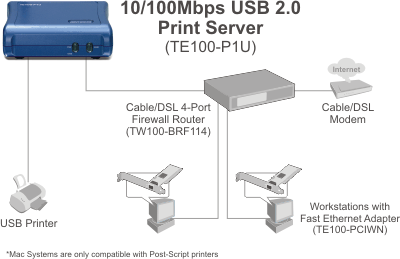

TRENDnet's TE100-P1U is a print server that transforms virtually any stand-alone USB networkable printer into a shared network printer. The TE100-P1U provides Fast Ethernet interface for integrating into existing network. The TE100-P1U is designed for printers equipped with USB 2.0 compliant printer port and it is an ideal network solution to convert conventional USB printer into a shared resource on the network.

  • Compliant with USB 2.0 High-Speed Printing
  • One RJ-45 10/100Mbps Auto-MDIX Fast Ethernet Port
  • Includes LPR Program for Windows 95/98/ME TCP/IP Printing
  • Supports IPP Printing for Windows 7/Vista/2003 Server/XP/2000
  • Supports second HTTP port for Remote Web Configuration and IPP Printing
  • Supports Mac 10.2 “Rendezvous” Zero-Configuration Function
  • TCP/IP protocol supports DHCP, IPP, LPR, HTTP
  • Includes Windows-Based Administrative Program and Web-Based Configuration
  • Built-in Flash Memory for Easy Firmware Upgrade
  • 3-year limited warranty

*Note: Mac systems are only compatible with Post-Script printers.
  • Hardware
  • Standards
  • IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX
  • Printer Interface
  • USB 2.0, 1.1 Compliant USB Type A Port
  • LAN Port
  • 10/100Mbps Auto-Negotiation UTP/STP RJ-45 Port
  • CPU/ SDRAM / Flash ROM
  • RDC R2886 150MHz / 2MByte / 512KByte
  • LED
  • Power, USB, Link/Act
  • Transport Protocol
  • TCP/IP
  • TCP/IP Protocol Supported
  • DHCP, IPP, LPR, HTTP
  • Supported OS
    • Windows 95/98(SE)/ME/NT/2000/XP/2003/Vista/7
    • Netware 5.x NDPS LPR Remote Printing (TCP/IP)
    • Unixware, Linux
    • Mac OS 10.1~10.6 (IP Printing)
  • Management
  • PS Utility or Web-Browser Configuration
  • Power
  • 5V DC 2.5A External Power Adapter
  • Dimensions
  • 115 x 85 x 30mm (4.5 x 3.4 x 1.2 inches)
  • Weight
  • 128g (4.5oz.)
  • Temperature
  • Operating: 0°~50°C (32°~122°F) Storage: -25°~55°C (-13°~131°F)
  • Humidity
  • 10%~90% (non-condensing)
  • Certifications
  • CE, FCC




  •

    Package Contents

    • TE100-P1U
    • Multi-Language Quick Installation Guide
    • CD-ROM (Utility & User’s Guide)
    • Power Adapter (5V DC, 2.5A)
