56K USB Data/Fax/TAM Modem
TFM-560U (Version B1.xR)

Save time with fast data transfer rates
Quickly network this compact device to your computer´s USB port
User friendly data, fax and voice software

DISCONTINUED PRODUCT

The TFM-560U (Version B1.xR) has been discontinued. It has been replaced by the TFM-561U (Version V1.0R). For a list of discontinued products, click here.

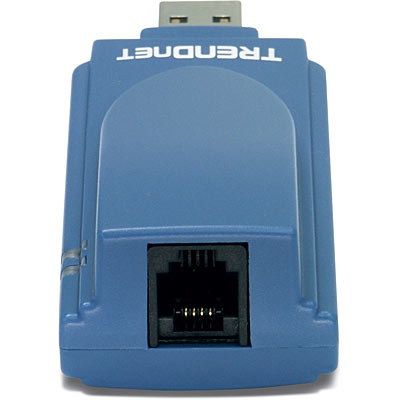

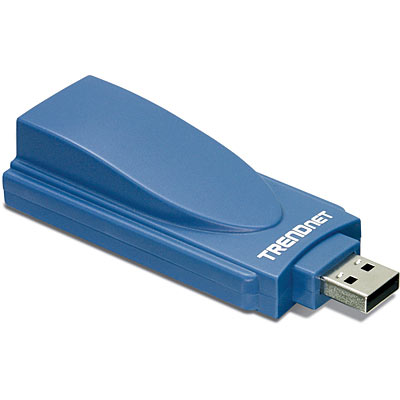

Click on image to enlarge

The TFM-560U High Speed USB 2.0 Fax Modem delivers fast access to the Internet with more efficient upload and download speeds. The V.92/V.44 standard modem offers the highest possible data transfer rates and reliable fax transmissions. The modem utilizes the latest V.92 standard providing Internet connection features such as Quick Connect, Modem-on-Hold, and 48Kbps upload rates.

Compliant with USB 2.0 and USB 1.1 Specifications
Compliant with V.92, V.90, V.44 Standards
Supports V.44 and V.92 Quick Connect, PCM Upstream and Modem On Hold Features
Up to 56Kbps Data Download Speed and 48Kbps Data Upload Speed
Hosts Signal Processing for both controller and data -pump
Supports TAM (Telephone Answering Machine) via Sound Card
Video Phone ready (Interface to H.324 Video Conferencing Support)
Compatible with Windows 98SE/ME/2000/XP/2003 Server/Vista/Windows 7 Operating Systems
Support ITU-T T.31 Class 1 fax with transfer rate up to 14.4kbps.
USB Bus-Powered method and Low Power consumption
Includes Data/Fax/Voice Communication Software
LED Display
3-year limited warranty


Hardware
Standard	USB 2.0 USB 1.1
Interface	1 x USB 2.0 /1.1 (Type A) 1 x RJ-11 Port (Phone Line)
Data Mode	V.92& V.90, V.34, V.32(bis), V.22(bis), V.22, V.23, V.21, Bell 212A, Bell 103
Error Correction	V.42, LAPM & MNP 2-4
Data Compression	V.44, V.42(bis) & MNP5
Fax Mode	ITU-T V.17, V.29, V.27ter and V.21 ch2, ITU-T T.31 Class1 Fax
Power Management	USB Bus-Powered
Power Consumption (Input 3.3VDC)	Idle Mode: 65mW Operating Mode: 134mW
Dimensions	100 x 35 x 23mm (3.94 x 1.38 x 0.91in.)
Weight	25g (0.88oz.)
Temperature	Operating: 0°C~ 40°C (32°F~ 104°F) Storage: -20°C~ 60°C (-4°F~140°F)
Humidity	10%~90% (non-condensing)
Certifications	FCC, CE
Functions
Supported OS	Windows 98SE/ME/2000/XP(32/64-bit)/2003 Server/Vista(32/64-bit)/Windows 7 (32/64-bit)
Voice Function	TAM (USA) Support with Concurrent DTMF Detect, Ring Detect 8-Bit u– Law/A-Law (G711) Coding 8000 Hz Sample Rate
Video Phone Ready	V.80 sync Access mode Supports Host-Controlled Communication Protocol H.324 interface Support
Multiple Country	Call Progress, Blacklisting Support
Miscellaneous	Data/Fax/Voice Call Discrimination Single Profile Stored in Host Modem and audio paths DTMF

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TFM-560U
Multi-Language QIG
Driver CD-ROM
RJ-11 Telephone Cable
