85Mbps Powerline Wireless Access Point
TPL-210AP (Version v1.0R)

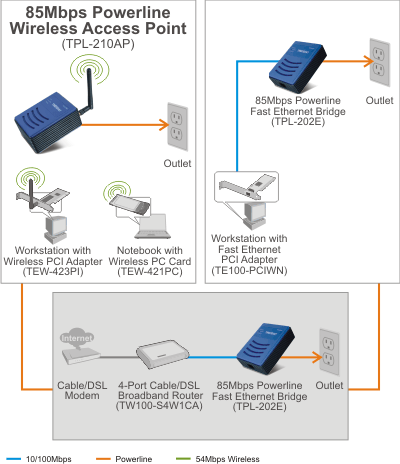

Provides wireless access to an existing building-wide powerline network
Plug in this adapter into an electrical socket for immediate wireless connectivity
Extends a wireless network into any room

DISCONTINUED PRODUCT

The TPL-210AP (Version v1.0R) has been discontinued. It has been replaced by the TPL-310AP (Version v1.0R). For a list of discontinued products, click here.

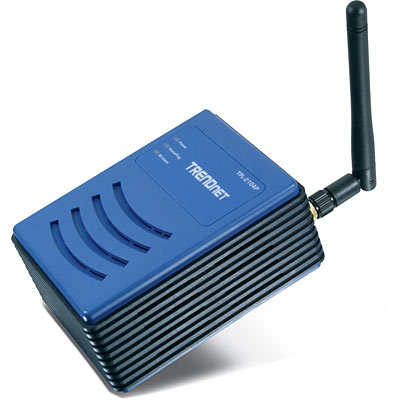

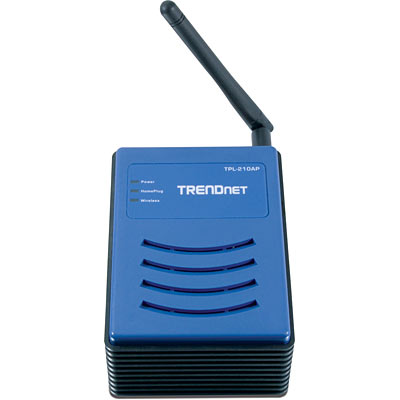

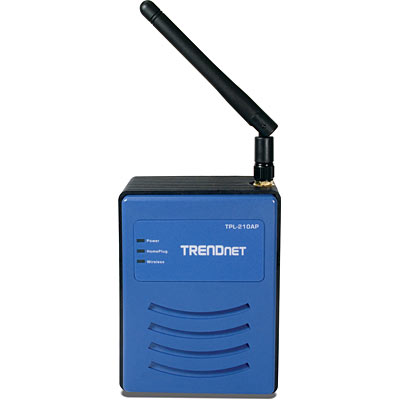

Click on image to enlarge

The Wireless Powerline Access Point removes additional costs in network cabling by using existing power lines in your home or small office to network several wireless workstations. Secure file sharing, an Internet connection, or other network resources by using 56-bit DES for 85Mbps power line transmission and WPA security for 54Mbps wireless transmission.

Wi-Fi Compliant with 802.11b/g Standards
Up to 54Mbps High Speed over Wireless Connection
Up to 85Mbps High-Speed Data Transfer Rate over Power Lines
Supports Access Point Mode
Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b
Supports ESSID Enable/Disable and MAC address Filter (60 entries) Feature to Increase Security
Supports 64/128-bit Wired Equivalent Privacy (WEP) and WPA/WPA2 (EAP/PSK) Encryptions
Wireless Range of 30 ~ 50 meters Indoor (depending on the environment)
Wireless Range of 50 ~ 100 meters Outdoor (depending on the environment)

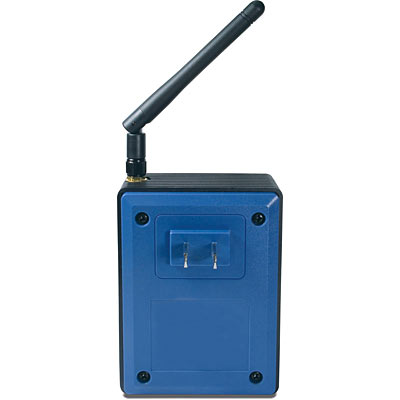

Connect to a Network using existing Powerlines with Wall-Plugged Design
3-year limited warranty

Specifications
Hardware
Standards	IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps) HomePlug 1.0 Turbo
LED Indicators	Power, HomePlug, WLAN
Network Protocols	TCP/IP, UDP
Power Source	100~240V AC, 50~60Hz
Dimensions (LxWxH)	74 x 100 x 35 mm (2.9 x 4 x 1.3 inches)
Weight	200g (7oz.)
Power Consumption	3.8 watts (max.)
Temperature	Operating: 0°~ 40°C (32°F~ 104°F) Storage:-10°~ 70°C (14°F~ 158°F)
Certification	FCC, CE
Powerline
Frequency Band	2MHz ~ 30MHz
Data Rate	Up to 85Mbps Transfer Rate
Nodes	Support up to 16 nodes per Network
Security	56-bit DES Encryption
Wireless
Module Technique	OFDM, CCK, DQPSK, DBPSK
Frequency Range	2.4 ~ 2.4835 GHz
Antenna	2dBi Detachable Dipole Antenna
Data Rate (auto fallback)	802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
Security	64/128-bit WEP (HEX/ASCII), WPA/WPA-PSK (AES/TKIP), WPA2/WPA2-PSK (AES/TKIP)
Transmit Power	13.5 ±1.5dBm (typical)
Channels	1~11 channels (US), 1~13 channels (EU)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Emulator

Package Contents

TPL-210AP
Multi-Language Quick Installation Guide
Utility CD-ROM
