Product Families » Power over Ethernet (PoE) » TPE-101I

Power over Ethernet Injector
TPE-101I (Version v2.0R)

Combines power and data over a single Ethernet cable
Powers devices such as TRENDnet PoE access points and PoE Internet cameras
Save on installation and equipment costs

DISCONTINUED PRODUCT

The TPE-101I (Version v2.0R) has been discontinued. It has been replaced by the TPE-111GI (Version v1.0R). For a list of discontinued products, click here.

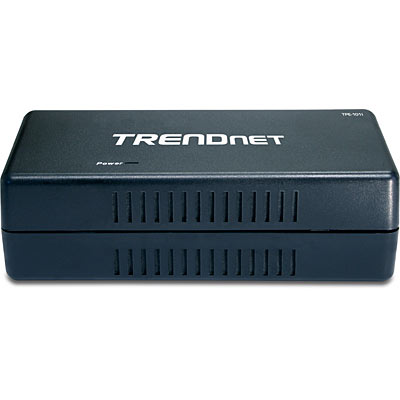

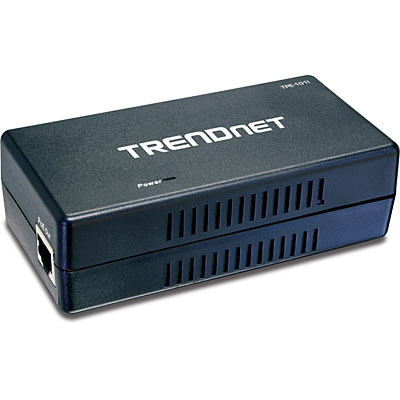

Click on image to enlarge

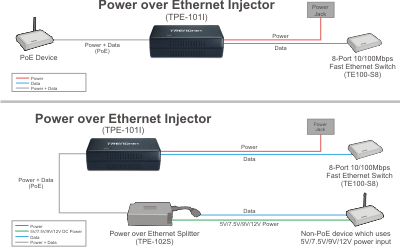

TPE-101I Power over Ethernet Injector provides an innovative and cost effective solution to a variety of Ethernet devices such as VoIP phones or Wireless Access Points. Reduce costs by using existing CAT5 cable to deliver both power and data where power source is difficult to obtain.

Compliant with IEEE 802.3af Power over Ethernet (PoE) Standard
Reduce Cabling for Wireless APs, IP Phone and any IEEE 802.3af Powered Device (PD)
Supplies Power to PD up to 15.5 Watts
Automatically Detecting PoE Terminals and Supplying Inline Power
Advanced Auto-Sensing Algorithm Giving Power only to 802.3af end device
High Safety Standards with Short Circuit Protection
Supports Power Detection and Classification
5-year limited warranty

Hardware
Standard	IEEE 802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3af Power over Ethernet
Network Media	10Mbps: UTP/STP Cat. 3, 4, 5; Up to 100 Meters 100Mbps: UTP/STP Cat. 5, 5E, 6; Up to 100 Meters
Protocol	CSMA/CD
Topology	Star

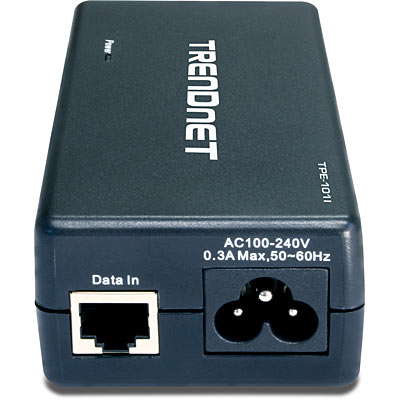

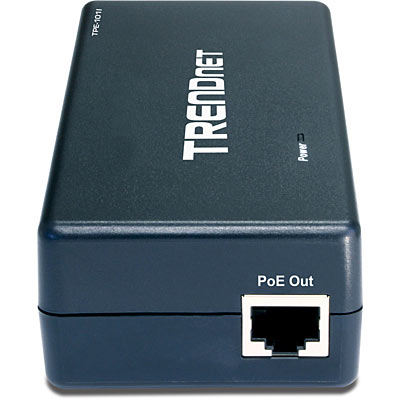

Ports	1 x DATA-IN Port (Data only) 1 x PoE-OUT Port (Data + Power)
Data Lines	Pair 1: Pin 1, 2 Pair 2: Pin 3, 6
Power	Input: Power supply: AC 100~240V, 50~60Hz, 0.3A Output: Class 0, 48V DC @ 15.4 watts ; Class 1, 48V DC @ 4 watts; Class 2, 48V DC @ 7 watts ; Class 3, 48V DC @ 15.4 watts
Diagnostic LEDs	Power (Green)
Power Consumption	15.5 watts (max)
Temperature	Operation: 0°C~45°C (32°F~ 113°F) Storage: -40°C~70°C (-40°F~158 °F)
Humidity	10%- 90% (non-condensing)
Dimensions (W x D x H)	115 x 57 x 35mm (4.5 x 2.2 x 1.4 in.)
Weight	325g (11.6oz.)
Certification	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TPE-101I
Multi-Language User´s Guide
Power Adapter (48VDC, 0.5A)
