Product Families » Routers » TW100-BRF114

4-Port Firewall Router
TW100-BRF114 (Version B1.xR)

Enjoy Fast Ethernet networking speeds
Easy Universal Plug and Play setup
Advanced firewall protection (NAT, NAPT & SPI)
Secure remote management

DISCONTINUED PRODUCT

The TW100-BRF114 (Version B1.xR) has been discontinued. It has been replaced by the TW100-S4W1CA (Version v2.0R). For a list of discontinued products, click here.

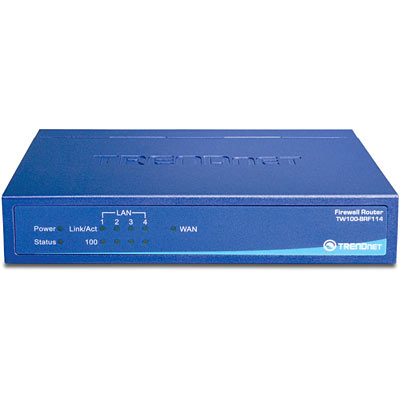

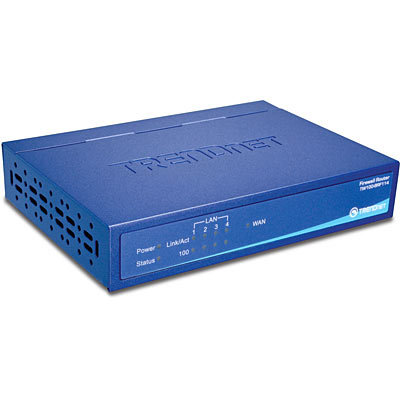

Click on image to enlarge

The 4-Port Cable/DSL Broadband Router allows multiple users to share Internet access while providing a secure configurable firewall environment to protect from unwanted intruders. Setup the TW100-BRF114 in minutes with an intuitive installation wizard and manage your network from any Internet connection with a user friendly Web browser.

The network management interface allows parents and network administrators to restrict Internet access based on client IP addresses, time/date, URL keywords, and service types. The TW100-BRF114 incorporates advanced Network Address Translation (NAT) and Stateful Packet Inspection (SPI) firewall technology to protect against popular denial of service attacks. Remotely administer your firewall from any location and access the Internet knowing your network resources are protected.

Built-in 4-port 10/100Mbps Auto-Sensing switch
Supports up to 253 users
Easy configuration using Web browser
Network Address Port Translation (NAPT) support
Firewall features include Stateful Packet Inspection (SPI) to protect against DoS attacks
Website access restriction using URL keywords and service types
Supports cable modem/xDSL modem (Dynamic/Static IP, PPPoE, PPTP) and FTTH (Fiber to the Home) connections
Supports most operating systems, such as Windows, Unix, and Mac
Application Level Gateways (ALGs) and special application support for programs which are difficult to use behind a Firewall
Supports DMZ and 40 Virtual Servers (Port Forwarding)
Supports Static Routing and Dynamic DNS Service
Supports 100 sessions of VPN pass-through for PPTP, IPSec and L2TP
Supports UPnP (Universal Plug &Play)
Remote management with HTTP/Web browser (from LAN, WAN, or both)
Flash memory for firmware upgrade and save/restore router configuration
3-year limited warranty

Hardware
Standards	IEEE 802.3, 802.3u
Protocols	NAT, PPPoE, HTTP, DHCP, TCP/IP, UDP, PAP, CHAP, RIP1, DDNS
Firewall	NAT firewall, attack alert (email) and log, Stateful Packet Inspection firewall for DoS (Denial of Service) attacks
Security	URL Filter, access control, local password

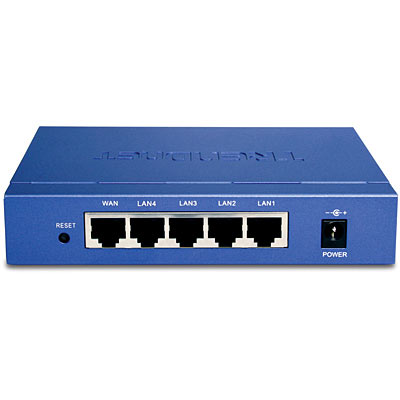

Local Port	4x 10/100Mbps Ethernet port (RJ45), Auto-MDIX
Internet Port	1x 10/100Mbps Ethernet port (RJ45)
LED	Power, status, link/act and 100 (LAN 1~4), WAN
Power	12V DC, 1A external power adapter
Dimensions (LxWxH)	141 x 100 x 27 mm (5.5x 3.9 x 1.06 inches)
Weight	Approximately. 363g (12.8 oz.)
Temperature	Operating: 0° to 40° C (32° to 104° F); Storage: -10° to 70° C (14° to 158° F)
Humidity	Operating: 0 % ~ 80 % (non-condensing); Storage: 0% ~ 95% (non-condensing)
Certifications	FCC, CE

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

Package Contents

TW100-BRF114
Quick installation guide
CD-ROM (user´s guide)
Power Adapter (12V DC, 1A)
