TRENDnet | Products | Wireless Print Servers

Product Families » Print Servers » TEW-P1PG

Wireless 1-Port Parallel Print Server
TEW-P1PG (Version B1.xR)

Turns a standalone parallel printer into a shared wireless resource
Use this wireless print server to place your printer in the most accessible location
Manages print server through web browser or utility

DISCONTINUED PRODUCT

The TEW-P1PG (Version B1.xR) has been discontinued. For a list of discontinued products, click here.

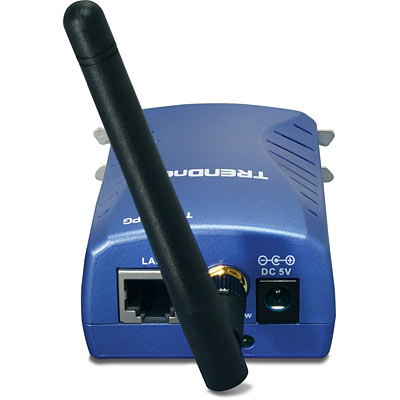

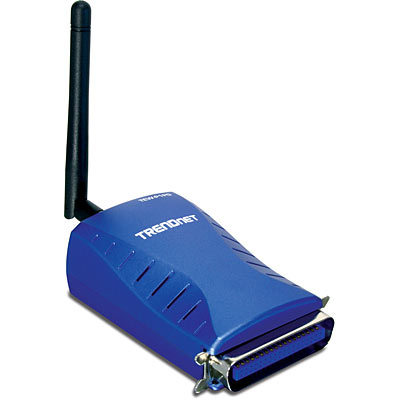

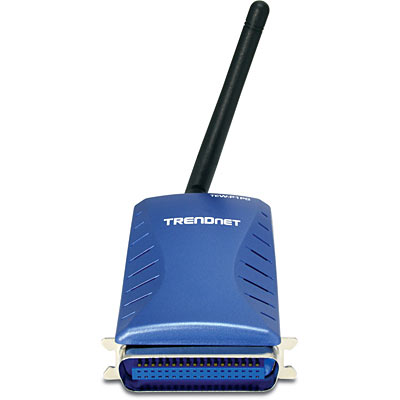

Click on image to enlarge

TEW-P1PG is a print server that transforms virtually any stand-alone Parallel networkable printer into a shared network printer. The TEW-P1PG provides IEEE 802.11g 54Mbps wireless interface for integrating into existing wireless network. The TEW-P1PG is designed for printers equipped with parallel compliant printer port and it is an ideal network solution to convert conventional parallel printer into a shared resource on the network.

Wi-Fi Compliant with IEEE 802.11b/g devices
One RJ-45 10/100Mbps Auto-MDIX Fast Ethernet port
IEEE 1284 male centronics (DB-36) Parallel printer port
Advance wireless encryption: WEP, WPA-PSK, WPA2-PSK
LPP printing for Windows
IPP printing for Windows 7/Vista/2003 Server/XP/2000
Printing over email and print error email notification
Second HTTP port for remote Web configuration
Supports Macintosh Rendezvous Zero Configuration *
Windows-based setup wizard and configuration utility
Web-Based (HTTP) configuration
Built-in flash memory for easy firmware upgrade
3-Year limited Warranty

*Mac Systems are only compatible with Post-Script printers

HARDWARE
Standards	Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX Wireless: IEEE 802.11g/b
Printer Interface	IEEE 1284 Male Centronics (DB-36)
LAN Port	10/100Mbps Auto-Negotiation UTP/STP RJ-45 Port
LED	Power, LPT, Link/Act
Transport Protocol	TCP/IP, SMB, NetBEUI, AppleTalk
OS Support	Windows 7(32/64-bit)/Vista(32/64-bit)/2003 Server/XP(32/64-bit)/2000/ME/98SE Netware 5.x NDPS LPR Remote Printing (TCP/IP) HP-UX Unix, Sun OS, Solaris, SCO Unix, AIX, Unixware, Linux & Mac OS 10.1 ~ 10.6
Management	Windows Utility or Web-Browser Configuration
Power	5V DC 2.5A External Power Adapter
Dimensions/Weight	57 x 90 x 32mm (2.2 x 3.5 x 1.3 inches) Not including antenna. /85 g (3 oz.)
Temperature	Operating: 0°~50°C (32°~122°F) Storage: -25°~55°C (-13°~131°F)
Humidity	10%~90% (non-condensing)
Certifications	CE, FCC
WIRELESS
Frequency	2.4 ~ 2.4835 GHz (Industrial Scientific Medical Band)
Encryption	64/128-bit WEP (ASCII/HEX), WPA-PSK
Antenna	2dBi detachable antenna (Reverse SMA Connector)
Data Rate	IEEE 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps IEEE 802.11b: 11Mbps, 5.5Mbps, 2Mbps and 1Mbps (Auto Fallback)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Emulator

Package Contents

TEW-P1PG
Multi-Language Quick Installation Guide
CD-ROM (Utility & Use’s Guide)
Power Adapter (5V DC, 2.5A)
