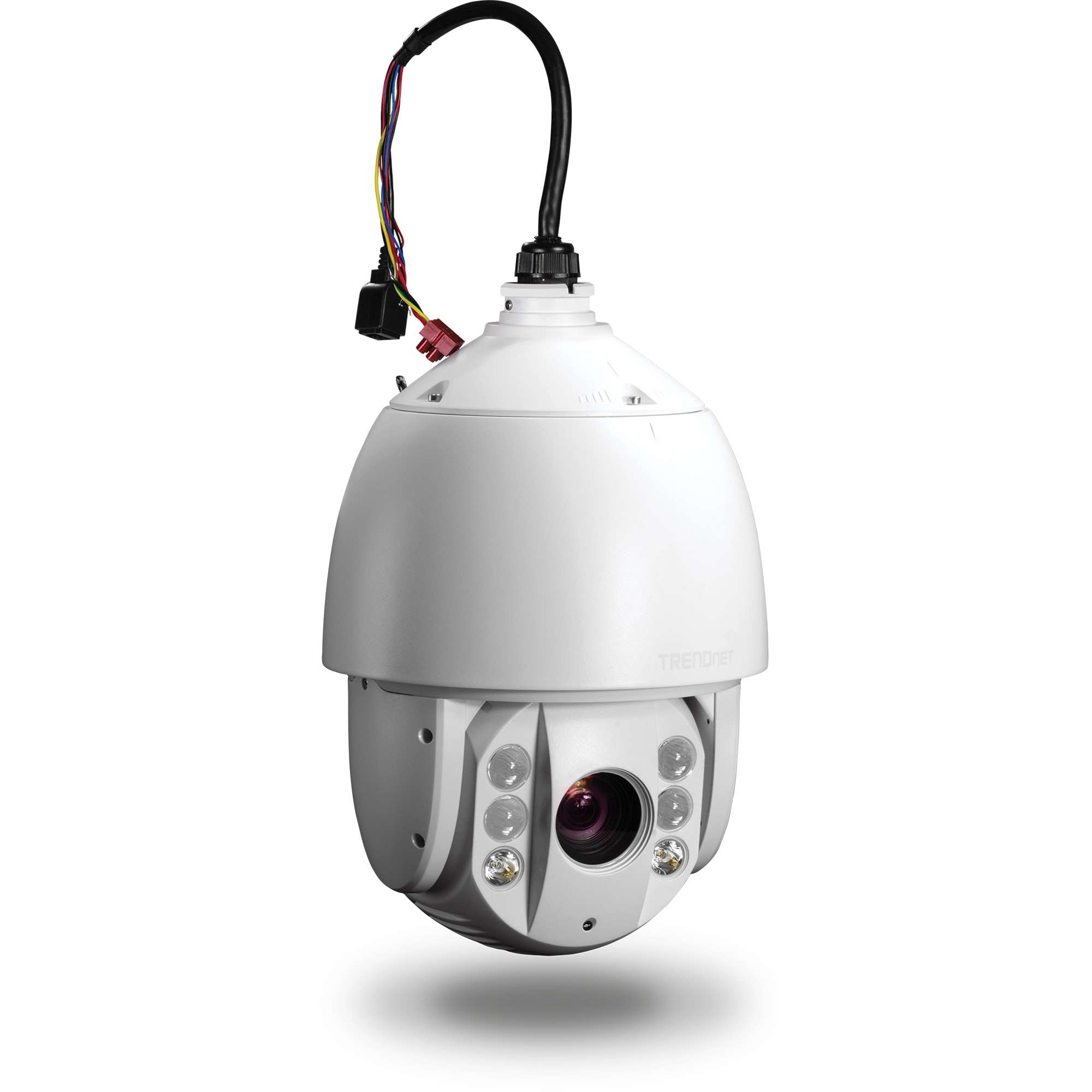

Outdoor 1.3 MP HD PoE IR Speed Dome Network Camera

TV-IP450PI (Version v1.0R)

  • 1280 x 960 HD resolution
  • 20x optical zoom, 16x digital zoom, and autofocus
  • Night vision up to 100 meters (330 ft.)
  • Outdoor IP66 weather rating
  • Endless 360° PTZ
  • Digital WDR optimizes high contrast lighting environments
  • Free pro-grade management software and mobile app
  • Separate mounting bracket required—TV-HC400, TV-HW400, TV-HP400, or TV-HN400

IPView Mobile App


Mobile App Compatibility List



DISCONTINUED PRODUCT
The TV-IP450PI (Version v1.0R) has been discontinued.  It has been replaced by the TV-IP450PI (Version v1.1R). For a list of discontinued products, click here.
Camera Demo

TRENDnet’s Outdoor 1.3 MP HD PoE IR Speed Dome Network Camera, model TV-IP450PI, offers powerful 20x optical zoom, 100 m (330 feet) night vision, an IP66 weather rating, and endless 360 degree PTZ functionality. Record 1.3 Megapixel HD video (1280 x 960) at 30 fps in a space saving H.264 compression format. Manage up to 32 TRENDnet cameras with included complimentary software and mobile apps. A separate mounting bracket is required—install with TRENDnet’s TV-HC400, TV-HW400, TV-HP400, or TV-HN400.


Powerful Zoom
20x optical zoom and 16x digital zoom combine for a total 320x zoom factor with autofocus
Smart IR
Night vision up to 100 meters (330 ft.) automatically adjusts to the zoom factor
Continuous PTZ
Endless 360° variable speed pan tilt zoom and user defined 3D zoom within the graphical user interface
Outdoor Rated
Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 65 °C (-22 – 149 °F)

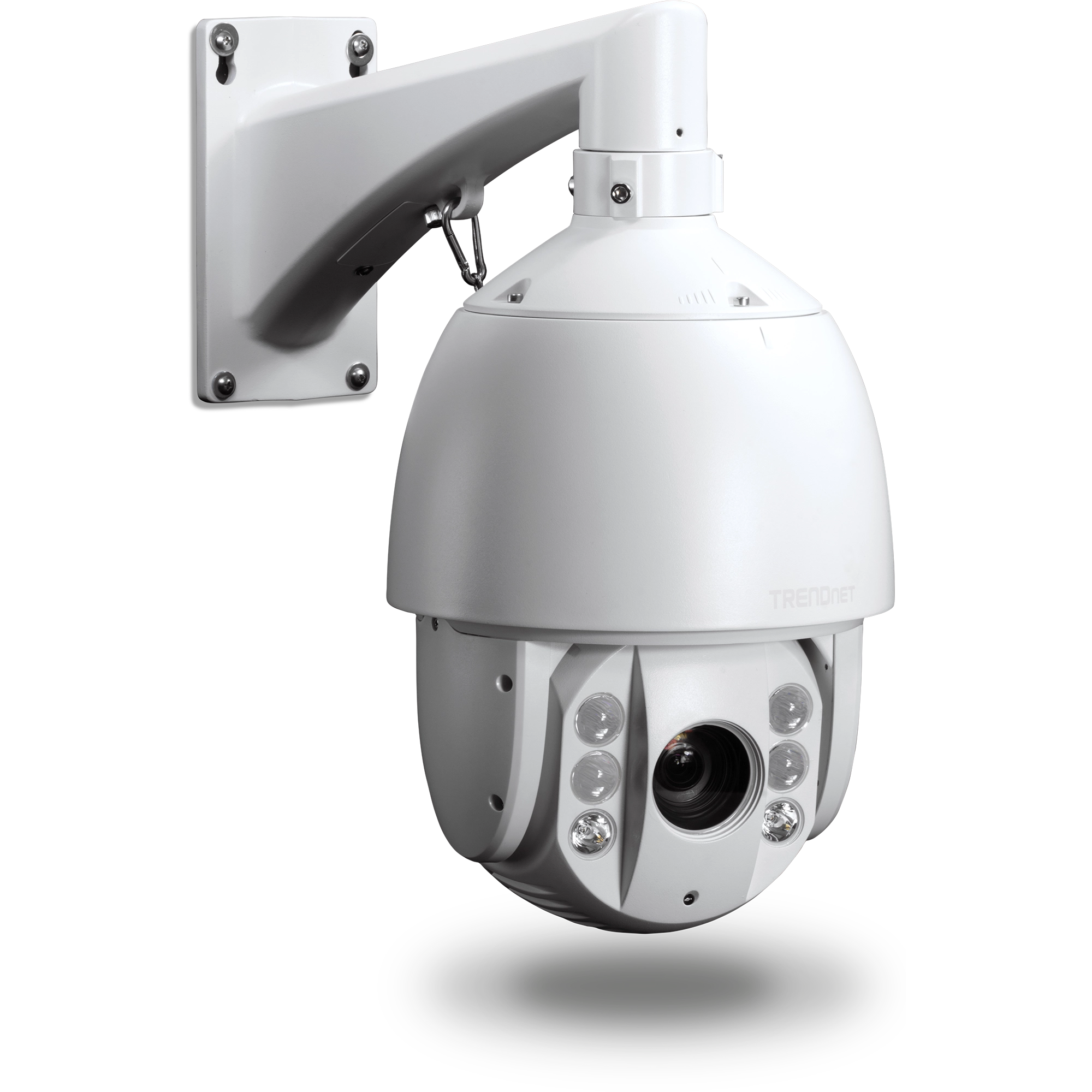

Additional Mounting Bracket Required
Separate mounting bracket required—install with TRENDnet’s TV-HC400, TV-HW400, TV-HP400, or TV-HN400
1.3 Megapixel HD
Record 1280 x 960 at 30 fps in the space saving H.264 compression format
Auto Patrol
Choose pre-defined or program up to eight auto patrol sequences with varying zoom levels
Storage
Record video to a Samba client or to a Micro SD card (up to 64 GB sold separately)
Tamper Detection
Receive tamper detection snapshots via email
D-WDR
Improved image quality and autofocus in high contrast lighting environments with Digital Wide Dynamic Range technology
Motion Detection
Create motion detection windows with separate sensitivity settings and event triggers
Recording Schedule
Define a weekly recording schedule
IPv6
IPv6 support
ONVIF
ONVIF compliant
Complimentary Software
Complimentary pro-grade software to manage up to 32 TRENDnet cameras
Complimentary Apps
Live video to a mobile device with free Apple® and Android™ apps

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and cover-age will vary depending on interference, network traffic, building materials and other conditions. 802.11n 2.4 GHz TurboQAM speeds requires clients with TurboQAM support.
** Printer Control Center utility installation required for each computer in order to access the printer

  • Lens
  • Focal length: 4.7 - 94 mm
  • Focal depth: 10 - 1000 mm (Wide-Tele)
  • Aperture: F1.4 - 3.5 (Wide-Tele)
  • Sensor: 1/3” Progressive Scan CMOS
  • Focus: auto/semi-auto/manual
  • Iris control: auto and manual
  • Viewing Angle
  • Horizontal: 54°
  • Zoom
  • Combined zoom factor: 320x
  • Optical: 20x
  • Digital: 16x
  • Speed: 3s
  • Pan/Tilt
  • Pan: endless 360°
  • Tilt: -5 - 90° (auto flip)
  • Pan speed: (manual) 0.1 - 160°/s, (preset) 240°/s
  • Tilt speed: (manual) 0.1 - 120°/s, (preset) 200°/s
  • Number of presets: 256
  • Patrol: 8 patrols, up to 32 presets per patrol
  • Scheduled PTZ: create detailed weekly schedule with the following activity options: auto scan, frame scan, random scan, patrol, pattern, preset, panorama scan, tilt scan, dome reboot, and dome adjust
  • Minimum Illumination
  • Color: 0.05 lux
  • B/W: 0.01 lux
  • IR on: 0 lux
  • 100 m IR illumination distance
  • Smart IR: automatically adjusts wide angle and narrow focus IR to match zoom ratio
  • Video
  • D-WDR: 128x
  • Shutter speed: 1 - 1/10,000s
  • H.264 resolution: 1280 x 960 up to 30 fps
  • MJPEG resolution: 704 x 480 up to 30 fps
  • Audio
  • 2-way audio
  • External microphone line in / speaker line out (mic and speaker not included)
  • Hardware Standards
  • IEEE 802.1x
  • IEEE 802.3
  • IEEE 802.3u
  • Device Interface
  • 10/100 Mbps proprietary PoE port
  • Power connector (for non-PoE installation)
  • Audio wires (in/out/ground)
  • Micro SD card slot
  • Suspension cable secures camera during installation
  • Housing
  • Weather rating: IP66
  • Network Protocol
  • IPv4, IPv6, UDP, TCP, IGMP, ICMP, ONVIF v2.2
  • DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
  • CIFS/SMB, NFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP
  • Operating Temperature
  • -30 - 65 °C (-22 - 149 °F)
  • Operating Humidity
  • Max. 90% non-condensing
  • Certifications
  • CE
  • FCC
  • Dimensions
  • 220 x 354 mm (8.7 x 14 in.)
  • Weight
  • 4.4 kg (9.7 lbs.)
  • Power
  • Input: 100~240V AC, 50/60 Hz, 2A
  • Output: 56V DC, 60W (Proprietary PoE)
  • Consumption: 35 Watts/21 Watts max. (IR and heater on/off)
  • Required Mounting Accessories (not included)
  • Ceiling mount: TV-HC400
  • Pole mount: TV-HP400
  • Wall mount: TV-HW400
  • Corner mount: TV-HN400
  • Management Interface
  • Multi-language support: English, French, German, Russian, and Spanish
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, saturation, limit gain, sharpness, focus mode, minimum focus, exposure mode, video standard, day/night switch, sensitivity, mirror, slow shutter, D-WDR, lens initialization, BLC, white balance, digital noise reduction, noise reduction level, zoom limit, HLC
  • D-WDR enhances video quality in high contrast daytime lighting
  • 3D DNR Digital Noise Reduction enhances night vision quality
  • Scheduled recording: continuous and motion detection
  • Video storage: to computer, NAS, CIFS/SMB share, NFS, Micro SD card, FTP server, or through software
  • Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
  • Smart privacy masks: custom privacy masks are fixed to an area of interest as the camera pans and tilts
  • Tamper detection: email notification if the viewing field is suddenly obscured
  • Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
  • Alert messages: storage full, storage error, and illegal login
  • Snapshot: real time snapshot, motion detection with schedule, tamper detection with schedule
  • Supported dynamic DNS services: dyn.com and No-IP.org
  • Management Setting: maximum 32 user accounts
  • Supports remote management
  • Storage logs: Alarm, Exception, Operation, and others
  • Compatibility: Internet Explorer® 9.0 or higher, Firefox® 13.0 or higher, Safari® 4.0 or higher, Chrome™ 24.0 or higher
  • TRENDnetVIEW Pro Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
  • TRENDnetVIEW App
  • Free Apple® and Android™ app
  • View your camera on your mobile device
  • Take snapshots
  • Pan/Tilt/Zoom
  • Warranty
  • 3 year limited


Package Contents

  • TV-IP450PI
  • CD-ROM (Software & User’s Guide)
  • Multi-Language Quick Installation Guide
  • Installation gloves & waterproof tape
  • Proprietary PoE injector
