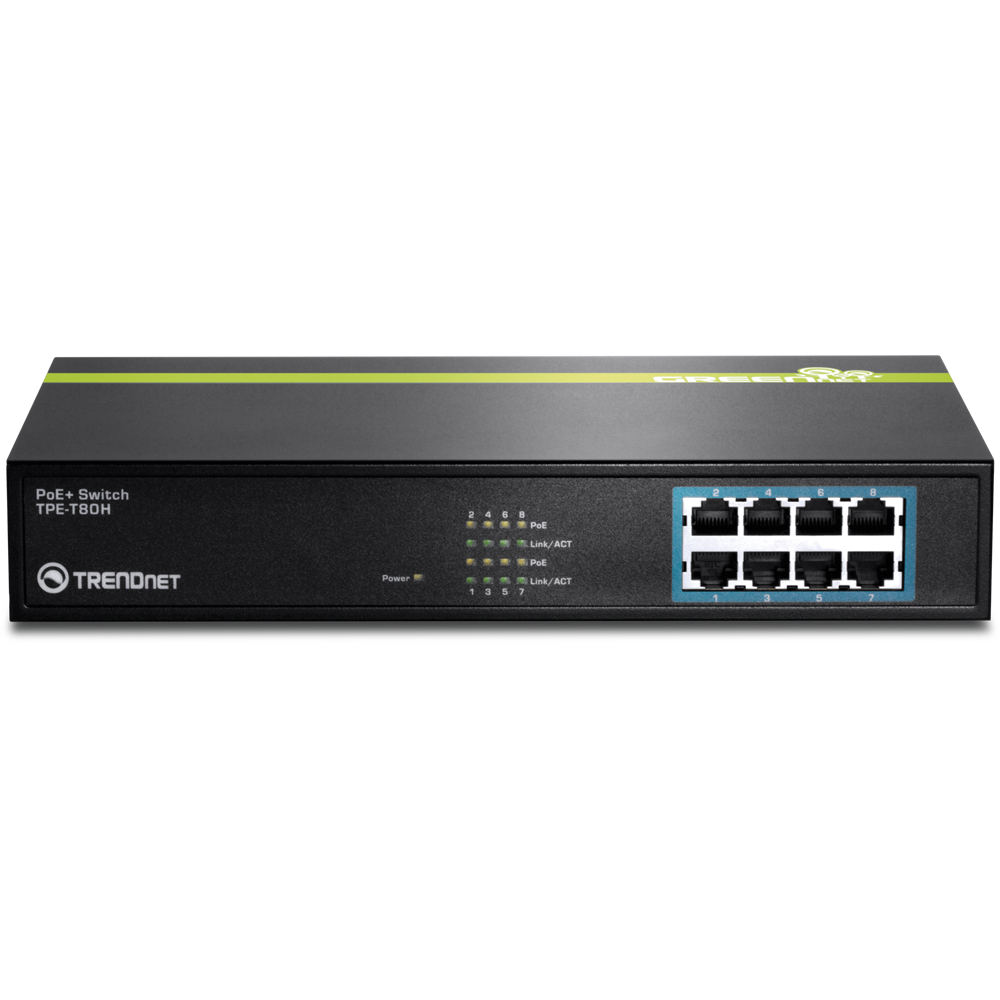

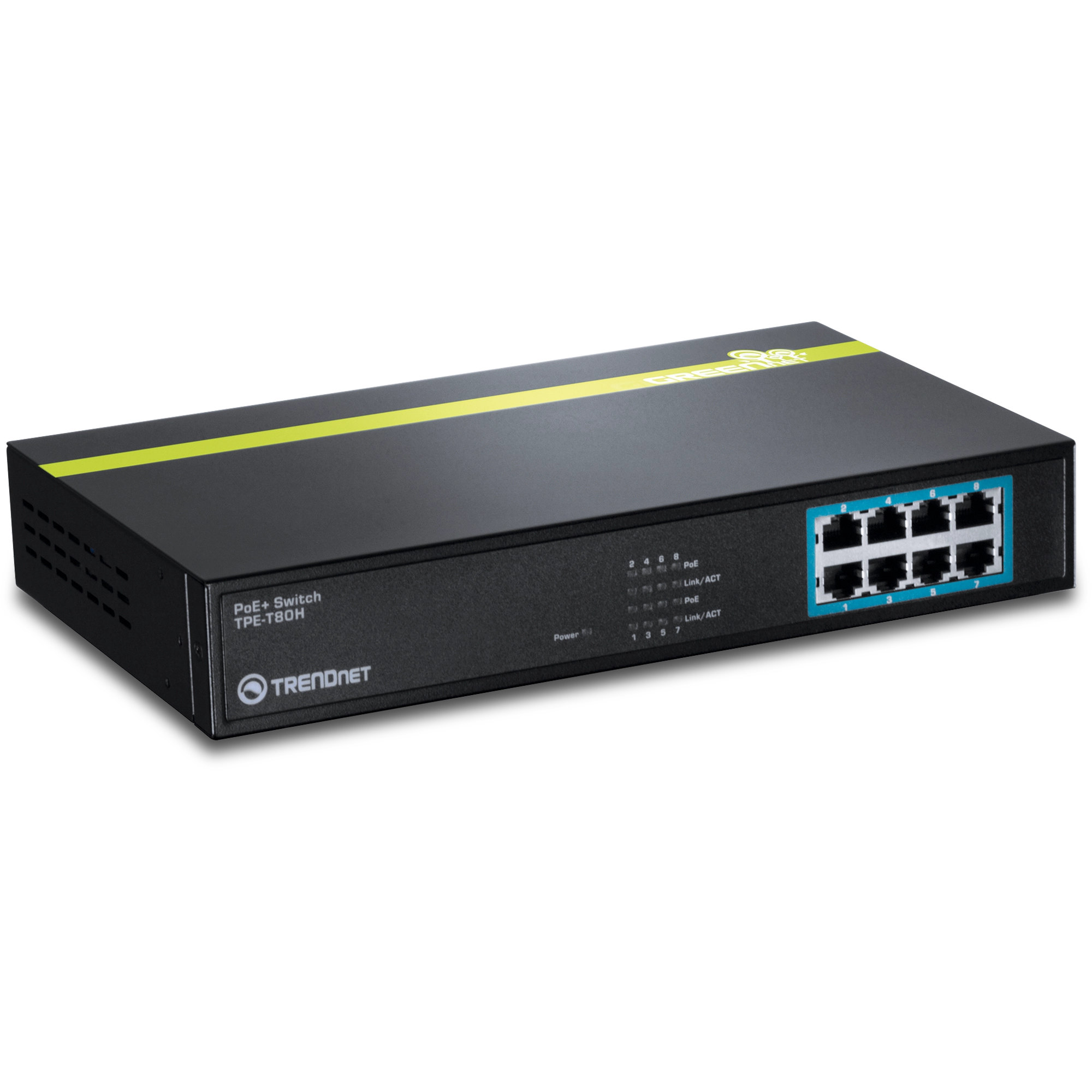

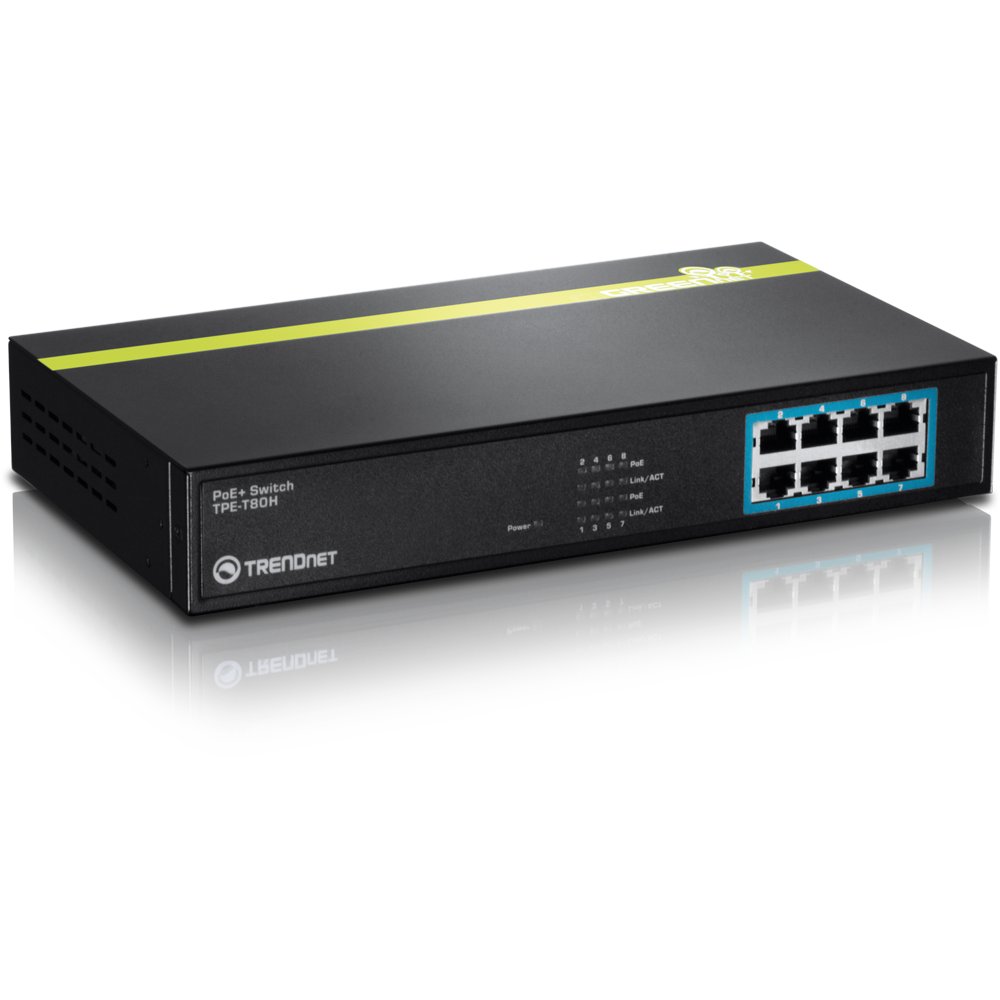

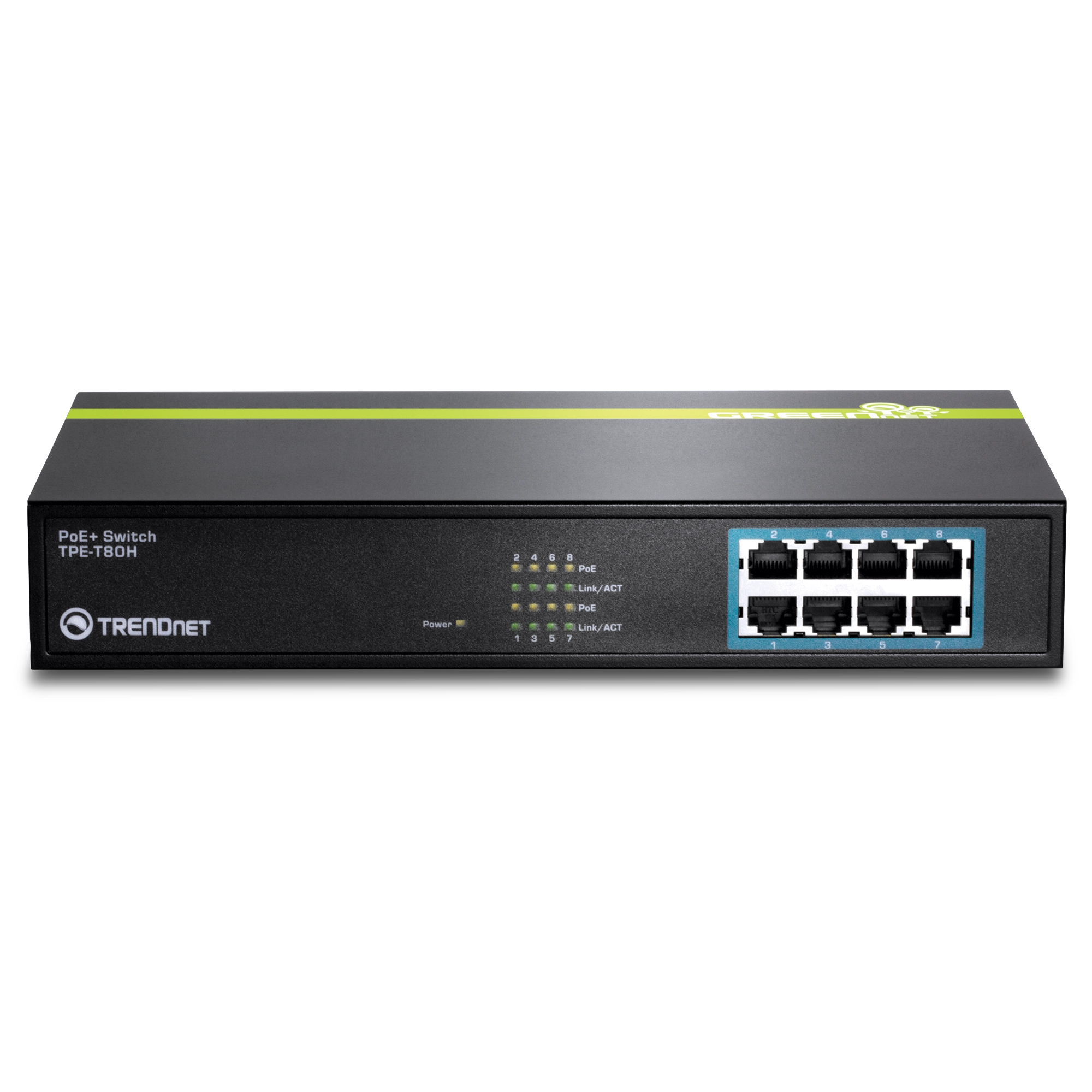

8-Port 10/100 Mbps PoE+ Switch

TPE-T80H (Version v1.0R)

  • 8 x 10/100 Mbps PoE+ ports
  • Up to 30 Watts per port with a 125 W total power budget
  • 1.6 Gbps switching capacity
  • Rack mount kit included
  • Use with TRENDnet’s PoE Splitter to network and power non-PoE devices
  • Limited Lifetime Warranty*

The 8-Port 10/100 Mbps PoE+ Switch, model TPE-T80H, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supplies up to 30 Watts of power per port with a 125 Watt power budget. A convenient on/off button is located on the back of the switch and a rack mount kit is included.


Hardware
PoE+
Supplies up to 30 Watts of PoE power per port with a 125 Watt power budget
Ports
8 x 10/100 Mbps PoE+ ports
Switching Capacity
1.6 Gbps switching capacity
Rack Mountable
Rack mountable metal enclosure with included mounting kit

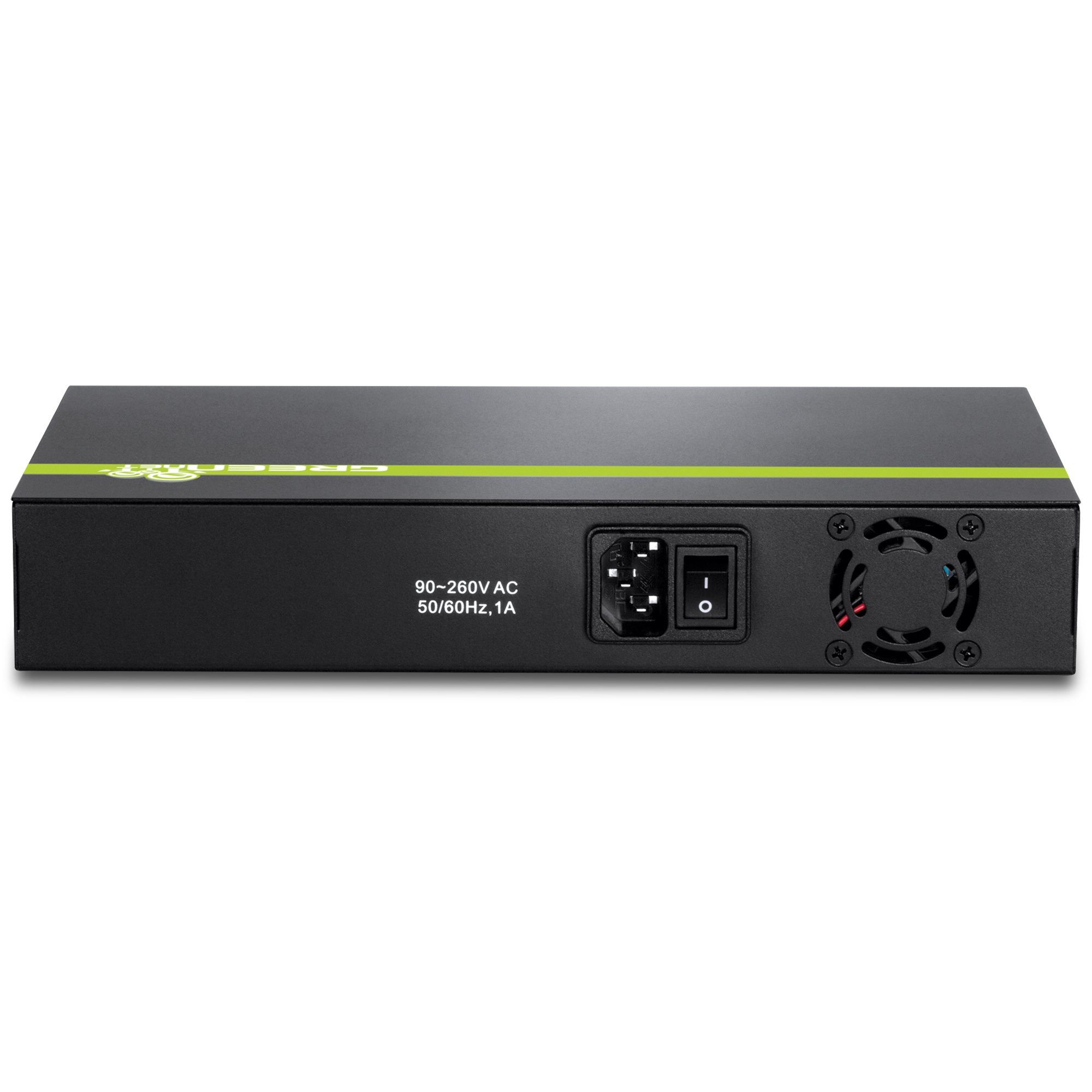

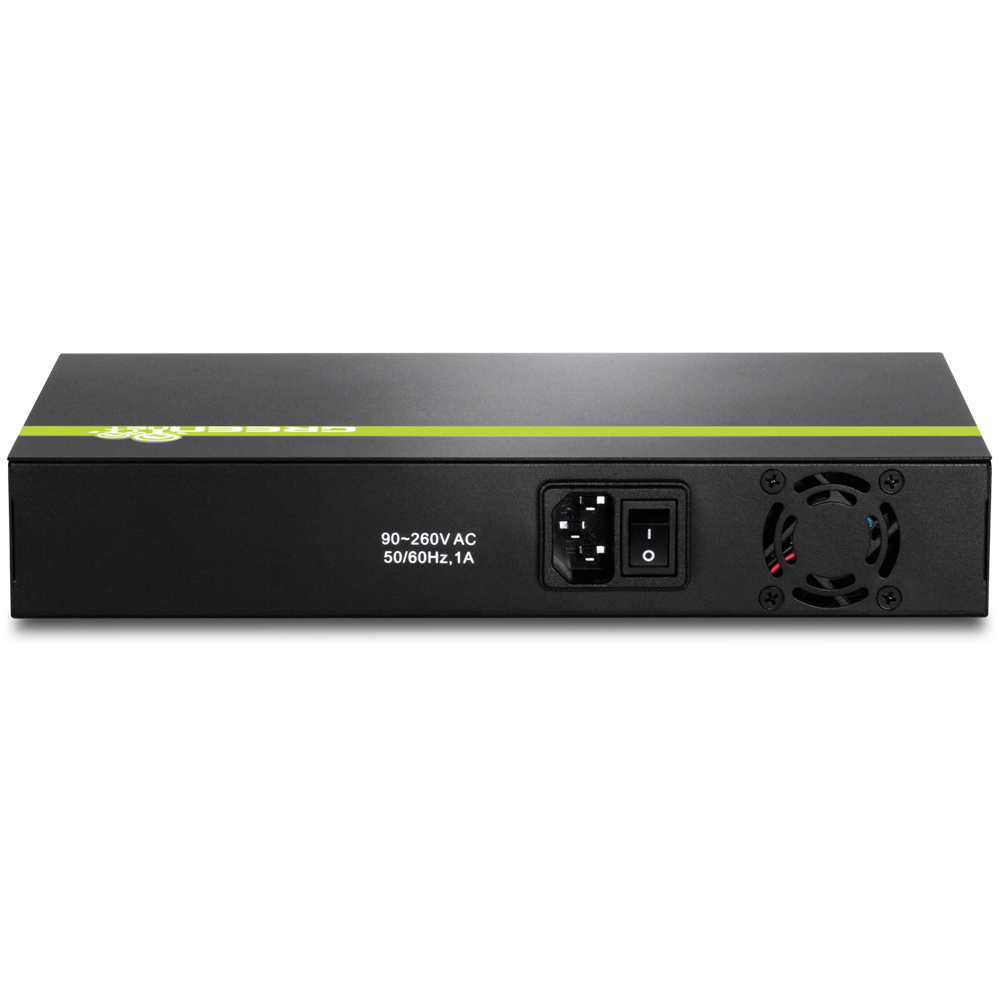

On/Off
Convenient on/off switch
LED Indicators
LED indicators convey port status
  • Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af (15.4 Watts/port)
  • IEEE 802.3at (30 Watts/port)
  • IEEE 802.3az
  • Device Interface
  • 8 x 10/100 Mbps PoE/PoE+ Ports
  • LED indicators
  • Power switch
  • Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Performance
  • Data Ram Buffer: 160 KB
  • Switch Fabric: 1.6 Gbps
  • MAC Address Table: 4K entries
  • Forwarding rate: 1.19 Mpps (64-byte packet size)
  • Special Features
  • Rack mount kit included
  • GREENnet energy saving technology
  • Power
  • Internal Power Supply
  • Input: 90-260 V AC, 50/60 Hz, 1 A
  • Output: 48 V DC, 50/60 Hz, 0.6 A
  • Consumption
  • Max.: 130 Watts
  • PoE budget: 125 Watts
  • PoE+
  • pin 1,2 for power+ and pin 3,6 for power- (mode A)
  • Operating Temperature
  • 0 – 40 °C (32 - 104 °F)
  • Operating Humidity
  • Max. 90% non-condensing
  • Dimensions
  • 263 x 160 x 44 mm (10.35 x 6.30 x 1.73 in.)
  • Weight
  • 1.8 kg (3.96 lbs.)
  • Certifications
  • CE
  • FCC
  • Warranty
  • Limited Lifetime Warranty*


Package Contents

  • TPE-T80H
  • Quick Installation Guide
  • Power cord
  • Rack mount kit


TRENDnet offers a limited lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year warranty.
