16-Channel HD NVR

TV-NVR2216 (Version v1.0R)

  • 16-Channel network video recorder
  • Manage up to 16 TRENDnet cameras*
  • Concurrent 1080p HD video recording for all channels
  • Two 3.5” SATA II bays support up to 12 TB of storage (HDDs not included)**
  • Continuous or event-based 1080p HD recording***
  • Advanced video playback
  • Rack mountable
IPView Mobile App

Mobile App Compatibility List

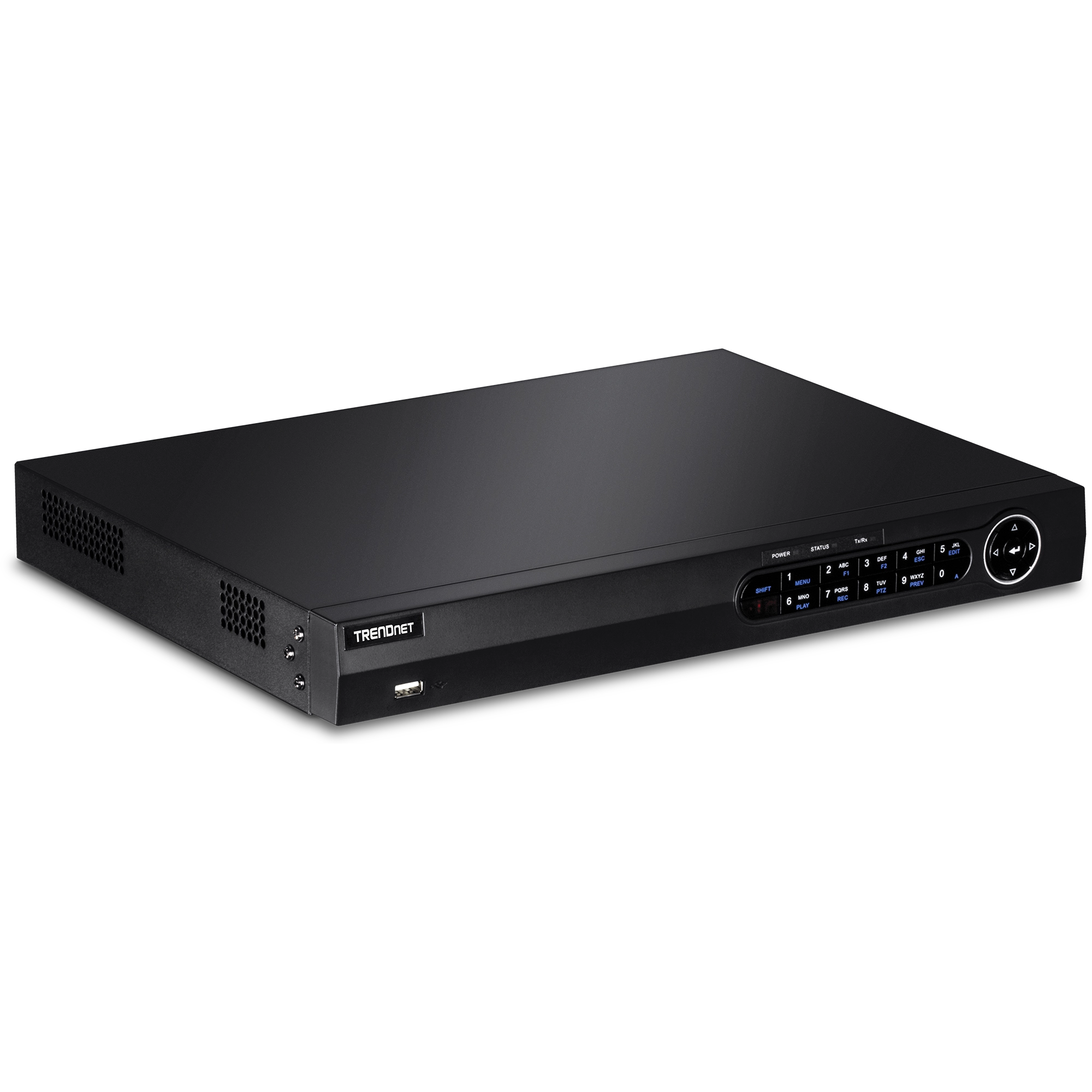

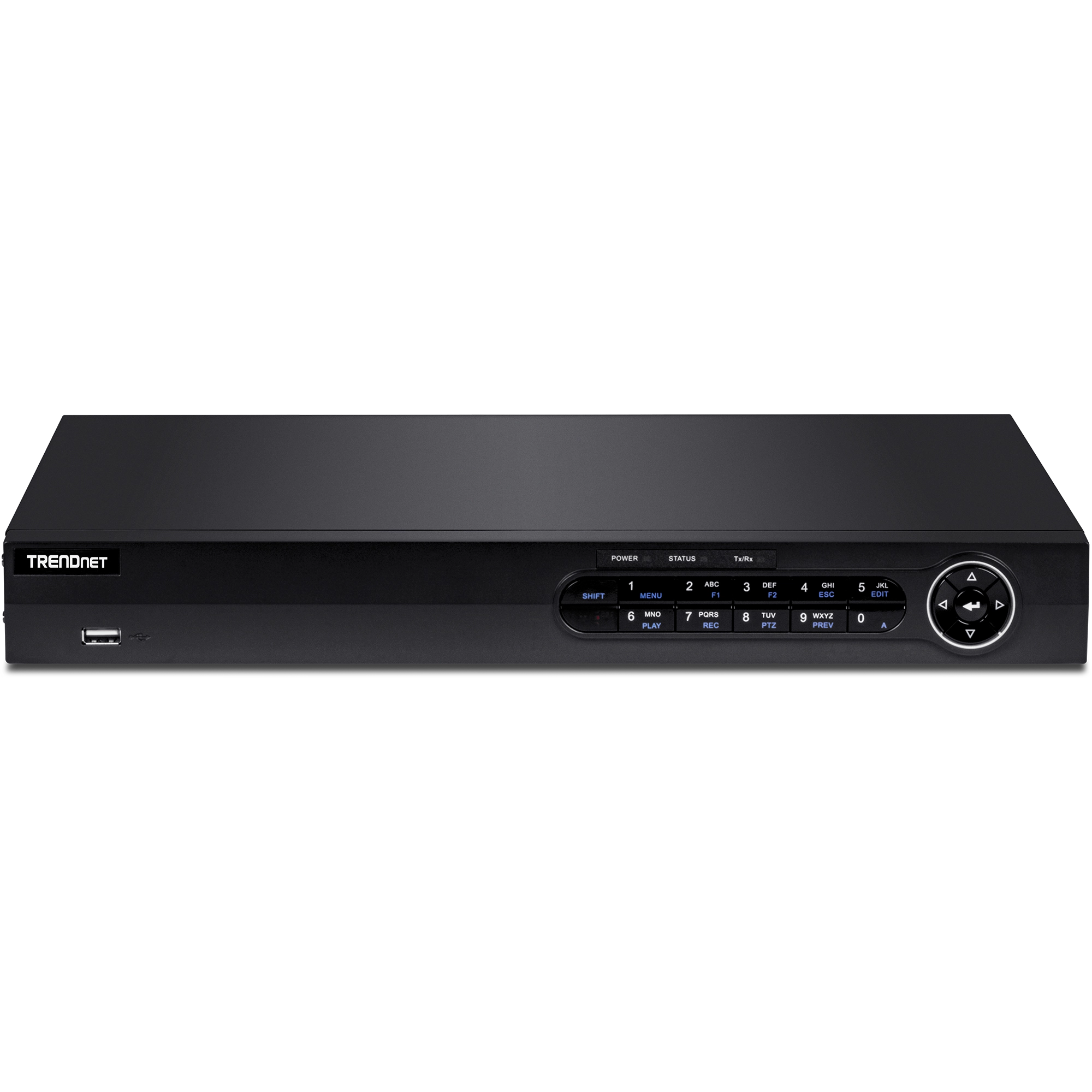

TRENDnet’s 16-Channel HD NVR, model TV-NVR2216, offers a comprehensive rack mountable video display, storage, and management solution. The NVR networks up to sixteen cameras* and auto-recognizes TRENDnet models. Install up to 12 TB of storage (hard drives not included)** to record continuous or event-based video from sixteen HD cameras***. The TV-NVR2216 features advanced video playback with free iOS and Android apps.

1080p HD NVR
This 1080p HD NVR supports up to a 12 TB hard drive and networks up to eight network cameras-hard drive, cameras, and display sold separately.
Easy Installation
The NVR auto-recognizes TRENDnet cameras* - simply connect compatible TRENDnet cameras and start recording surveillance video.
Intuitive Interface
Users will find the management interface intuitive and easy to use quickly navigate live view preferences, recording schedules, and advanced playback options.

Manage up to sixteen TRENDnet network cameras*
Storage Bay
Two 3.5” SATA II bays supports up to 12 TB of total storage (6 TB per bay, HDDs not included)**
Network Port
Gigabit Ethernet network port
Display Ports
HDMI and VGA display ports
Audio Ports
RCA Audio in and out ports
USB Ports
One USB port for the included mouse and one for configuration backup and firmware upgrade
Mouse Included
Includes a mouse and does not require a keyboard
Rack Mount
Rack mount hardware included
Free Apps
View live video on a mobile device with free iOS and Android apps
Remote Access
Access the NVR over the internet
Camera Setup
Auto-recognizes TRENDnet cameras*
Live View
Multiple camera viewing options with variable-time auto-scan function
Camera Management
For each camera, manage on screen display, image settings, PTZ functionality, motion detection, privacy masks, tamper detection, and video loss
Video Recording
Full 1080p HD video at 30 fps in H.264 compression
Single camera max. resolution: 6 MP in H.264 compression
Recording Time
Record per camera with 12 TB of storage (HDDs not included)** and 16 x Full 1080p HD cameras at 30 fps with medium VBR
Scheduled Recording
Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full
Advanced Playback
Advanced archived video playback with a quick reference timeline and calendar
Video Export
Quickly export specific video types over a specified time
Dynamic DNS Support
Support for dyn.com and NO-IP.com
IPv6 support
Video Output
  • HDMI / VGA
  • Resolution:
  • Line-in with RCA connector (2.0Vp-p, 1kΩ)
  • Line-out with RCA connector
  • 16-channel simultaneous recording up to 1080p 30fps
  • 2 SATA interface for HDD or SSD up to 6TB storage each
  • Playback resolution: 5MP, 4 MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Hardware Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab

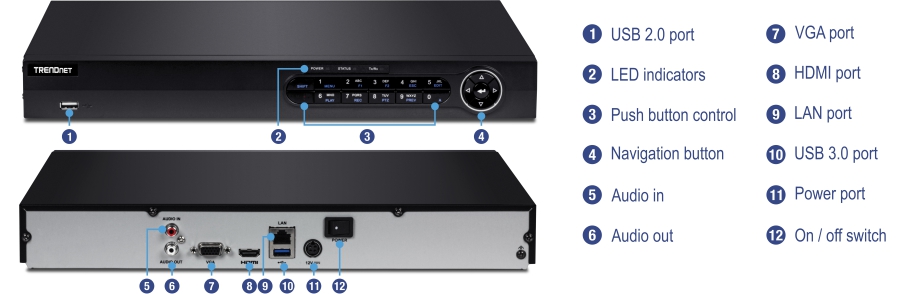

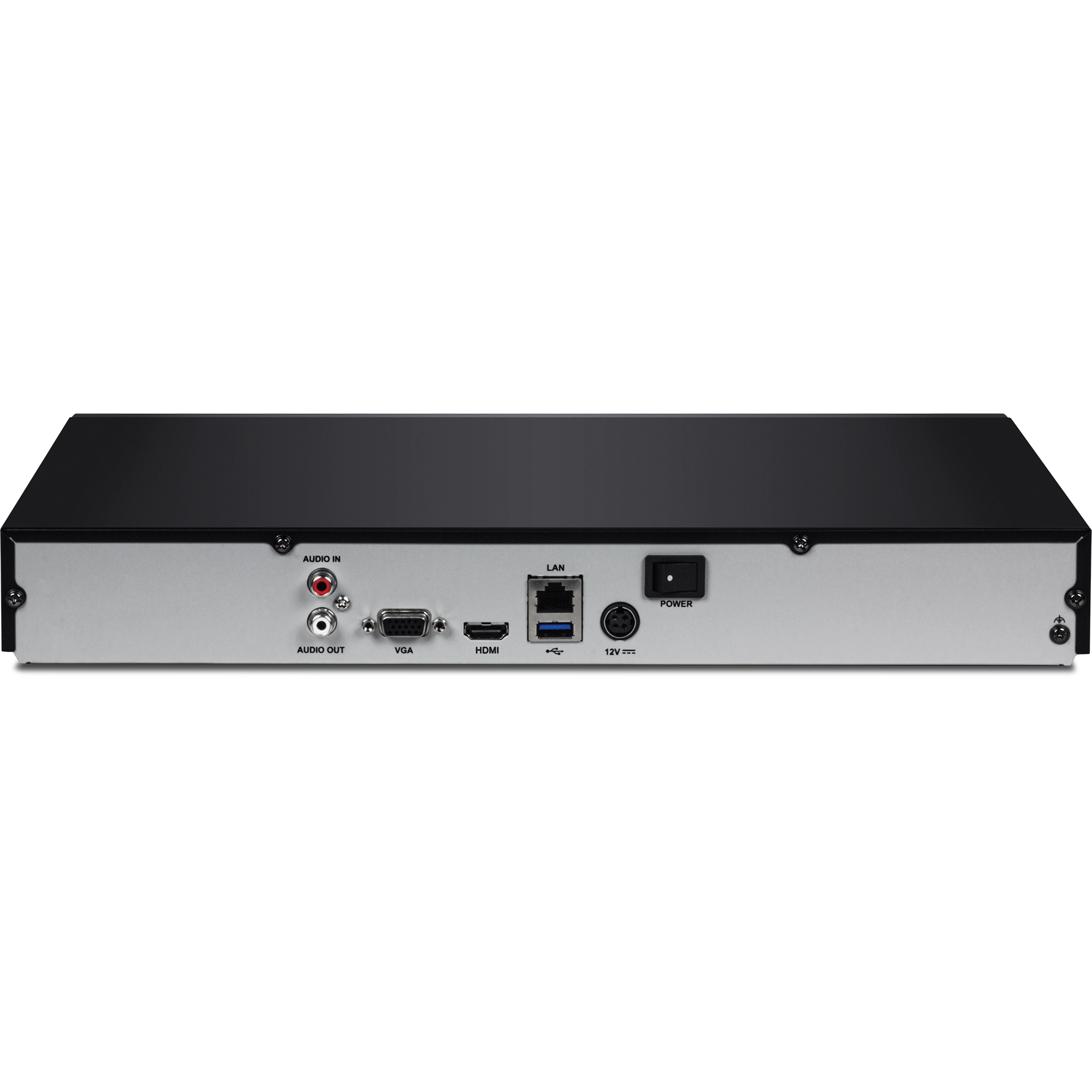

Device Interface
  • 1 x Gigabit network port
  • 1 x USB 2.0, 1 x USB 3.0
  • HDMI port
  • VGA port
  • Analog audio in / out port
  • Power port
  • LED indicators (Power, Storage, and Network)
Network Protocol
  • IPv4, IPv6, UDP, TCP, ICMP, SSL, TLS
Operating Temperature
  • -10 - 55 C (14 - 131 F)
  • Operating Humidity
  • Max. 90% non-condensing
  • CE
  • FCC
  • UL
  • 380 x 270 x 45 mm (15 x 11 x 1.8 in.)
  • 1.64 kg (3.6 lb.)
  • Input: 100 240 V AC, 50/60 Hz, 1.7 A
  • Output: 12 V DC, 3.33 A
  • Consumption: 10 Watts max. (with HDD)
Management Interface
  • Multi-language support: English, French, German, Portuguese, and Spanish
  • Live view: Simultaneous 3x3, 1+7, 1+5, 2x2 views or auto switch single view
  • Scheduled recording: continuous and motion detection with optional holiday exceptions.
  • Supporting camera configuration through NVR*: On Screen Display, display settings: brightness, contrast, saturation, PTZ, motion detection setting, video tamper, and video loss.
  • Holiday scheduling for custom recording schedules during observed holidays
  • Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
  • Video export: tag, cut, and export video clips
  • HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email
  • USB external storage: firmware upgrade, import / export configuration file and logs, export recorded video files, search and playback videos directly from external storage
  • Local live view settings: define screen layout and channel viewing sequence
  • Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions
  • Supported dynamic DNS services: Dyn.com and NO-IP.com
  • Management Setting: maximum 32 user accounts
  • Traffic chart and statistics for network management
TRENDnet IP View App
  • Free iOS and Android app
  • View your NVR video on your mobile device
  • Take snapshots
  • Zoom
  • 2 years
  • TV-NVR2216 (No HDD installed)
  • CD-ROM (Utility & User’s Guide)
  • Power Adapter (12V DC)
  • Network cable (1.8 m / 6 ft.)
  • HDMI cable (1.8 m / 6 ft.)
  • Optical mouse
  • Remote Control
  • SATA data cables / power cables
  • Quick Installation Guide
  • Rack mount hardware

* See list of compatible cameras http://www.trendnet.com/products/nvr-solutions
** 6 TB per hard drive
*** Two weeks of continuous recording 16 cameras in 1080p resolution at 30 fps (medium VBR) with 12 TB of storage (HDDs not included)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
