Install a fast Ethernet port on your laptop in minutes
Save time by sharing files and accessing data quickly
Plug it in and start accessing the network right away
TE100-PCBUSR gears with leading 32-bit bus architecture and full-duplex capabilities, which liberates high-speed network performance by providing a smooth connection to both 10/100Mbps Ethernet environments. This card is the ultimate solution for the CardBus equipped addition. Its auto-negotiation feature also configures to meet any kind of network card. It also guarantees easy installation and extra low power consumption with power-down mode and broad compatibility.
Features

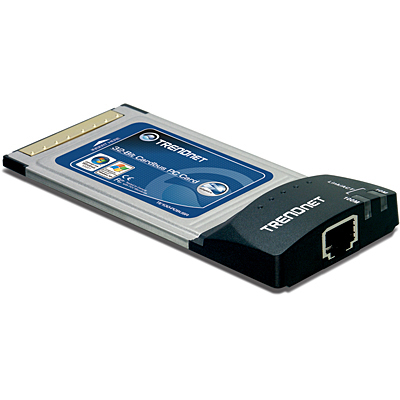

PCMCIA CardBus 68-pin Connector Type II Card
32-Bit Bus-Mastering Data Transfer
10/100Mbps Data Rate Auto-Negotiation Operation
Built-in Transmit 4Kbytes RAM Data Buffers
Supports Full-Duplex Mode Doubles Network Data Rate to 20/200Mbps
Integrated RJ-45 XpressPort for Dongle/Coupler-Free Connection
Supports Windows 7/Vista/XP/2000/ME/98SE
Ultra Low Power Consumption
Single Shielded RJ-45 Connector & UTP/STP Cabling Supported
Ethernet: 10Mbps/20Mbps (Half/Full-Duplex) Fast Ethernet: 100Mbps/200Mbps (Half/Full-Duplex)
Protocol
CSMA/CD
Interface
32-Bit CardBus Type II
Dimension
120 x 53 x 3mm (4.7 x 2 x 0.1 inches)
Power Consumption
3.3V DC
Diagnostic LED
10M Link/Activity 100M Link/Activity
Supported Drivers
Windows 7 (32/64-bit)/ Vista (32/64-bit) /XP (32-bit) /2000/NT4.0/ME /98SE Novell NetWare Server 3.21, 4.1x, 5.0 Novell Netware ODI for DOS / ODI Client 32 Packet Driver, NDIS 2.0
Temperature
Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10°~ 70° C (14° ~ 158° F)
