Upgrade your computer to 450Mbps Dual Band Wireless N
Seamlessly stream HD video over the less congested 5GHz band
Position the adapter in the optimum location using the USB extension cable
Powered by the computers’ USB port
One-touch connection to router with Wi-Fi Protected Setup (WPS)

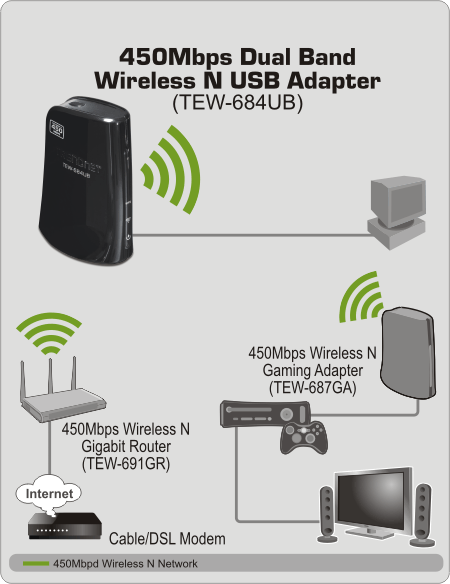

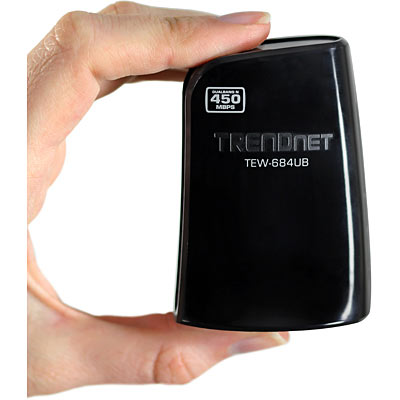

TRENDnet's compact N900 Dual Band Wireless USB Adapter, model TEW-684UB, connects a laptop or desktop computer to an ultra-high performance 450Mbps dual band wireless network.

Quickly connect to a 450Mbps 2.4GHz or 5GHz wireless network at the touch of a button with the convenience of one-touch Wi-Fi Protected Setup (WPS). Seamlessly stream HD video over the less congested 5GHz band.

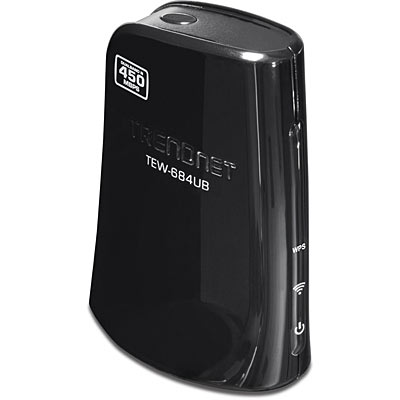

Place the adapter in the most ergonomic location with the included USB extension cable. Advanced Multiple Input Multiple Output (MIMO) antenna technology with three spatial streams per antenna generates a maximum theoretical wireless throughput of 450Mbps. WMM® Quality of Service (QoS) technology prioritizes gaming, Internet calls, and video streams. LEDs on the front of the adapter convey device status. Upgrade your computer's wireless connection to experience the speed of a 450Mbps network.

1 x USB 2.0 connector
Wi-Fi compliant with IEEE 802.11n/g/b/a standards
One-touch wireless connection with external Wi-Fi Protected Setup (WPS) button
Multiple Input Multiple Output (MIMO) technology
Maximum reliability, throughput, and connectivity with automatic data rate switching
Supports 64/128-bit WEP, WPA/WPA2-RADIUS, and WPA-PSK/WPA2-PSK
Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
Easy user setup and intuitive diagnostic utility
Coverage of up to 100 meters indoor (330 feet) and 300 meters outdoor (980 feet) *
3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
Interface	USB 2.0
Standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g and IEEE 802.11n
Button	WPS button: enables quick wireless connection with WPS function
Power Consumption	Receive mode: 406mA (max.) Transmit mode : 428mA (max)
Supported OS	Windows 7 (32/64-bit), Vista (32/64-bit), XP and 2000
Dimensions (LxWxH)	72 x 50 x 31 mm (2.8 x 2.0 x 1.2 in.)
Weight	40 g (1.41 oz)
Temperature	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -20° ~ 60° C (-4° ~ 140° F)
Humidity	Max. 85% (non-condensing)
Certifications	CE, FCC
Wireless
Modulation	CCK/ OFDM - BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK
Antenna	2.4GHz: 2dBi (built-in on board) 5GHz: 1dBi (built-in on board)
Frequency	802.11b/g/n: 2.412 ~ 2.484 GHz 802.11a/n: 5.15 ~ 5.825GHz (FCC), 5.470 ~ 5.725GHz (ETSI)
Data Rate (auto fallback)	802.11a: up to 54Mbps 802.11b: up to 11Mbps 802.11g: up to 54Mbps 802.11n: up to 450Mbps
Output Power	802.11a: 13dBm (typical) 802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n/g: 13dBm (typical) 802.11n/a: 11dBm (typical)
Receiving Sensitivity	802.11b: -84dBm (typical) at 11mpbs 802.11g: -72dBm (typical) at 54Mbps 802.11n/g: -65dBm (typical) at 450Mbps 802.11n/a: -64dBm (typical) at 450Mbps
Encryption	64/128-bit WEP, WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK
Channels	802.11b/g/n: 1~11 (FCC), 1~13 (ETSI) 802.11a/n: 36, 40, 44, 48, 149, 153, 157, 161, 165 (FCC), 36, 40, 44, 48 (ETSI)

TEW-684UB
CD-ROM (Utility and Driver)
Multi-Language Quick Installation Guide
USB cable 100cm (39.3 in)
