Access Point, WDS, and Repeater modes
Ultra fast 450Mbps wireless n speed and coverage
High performance Gigabit LAN port
Connect computers with one-touch Wi-Fi Protected Setup (WPS)

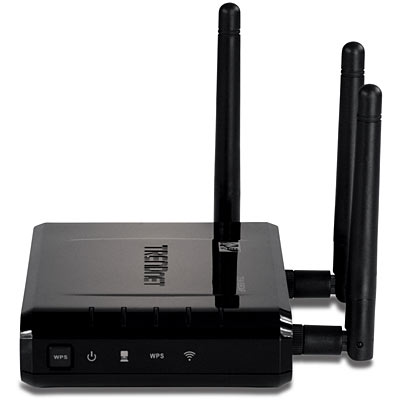

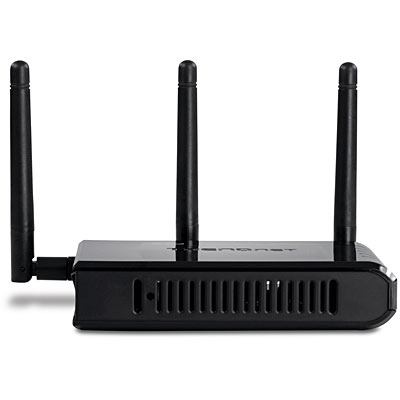

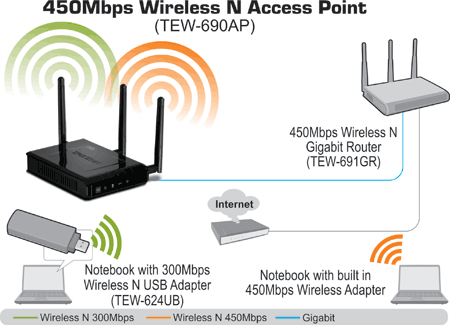

TRENDnet’s N450 Wireless Access Point, model TEW-690AP, supports Access Point, Wireless Distribution System (WDS), and Repeater mode functionality.

Advanced Multiple Input Multiple Output (MIMO) antenna technology with three spatial streams per antenna, generates a maximum theoretical wireless throughput of 450Mbps and exceptional wireless coverage.

A Gigabit Ethernet port maintains high performance wired connections. Wi-Fi Protected Setup (WPS) integrates other WPS supported devices at the touch of a button. Advanced features include 4 SSIDs per wireless band, different encryption for each SSID, WMM Quality of Service data prioritization, WPA2-RADIUS encryption, and a convenient on/off power switch.

High performance 450Mbps wireless n access point

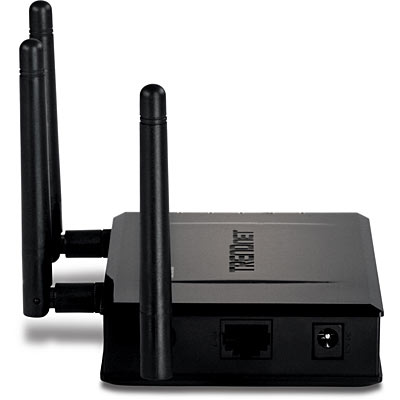

1 x 10/100/1000Mbps Auto-MDIX Gigabit LAN port
1 x WPS button
1 x Reset button
On/off power switch (EU Version)
Diagnostic LEDs
Wi-Fi compliant with IEEE 802.11n standard
Backwards compatible with IEEE 802.11g/b devices
Features Wireless Distribution System (WDS) and Repeater modes for wireless network expansion
Supports 64/128-bit WEP, WPA/WPA2-PSK, and WPA/WPA2-RADIUS wireless security
Mac filter feature for added security
Wi-Fi Multimedia (WMM) Quality of Service (QoS) data prioritization
Multiple Input Multiple Output (MIMO) antenna technology
Define up to 3 additional SSIDs
One touch wireless connection using the WPS button
Maximum reliability, throughput, and connectivity with automatic data rate switching
Easy user setup wizard and intuitive Web browser configuration
Coverage of up to 100 meters indoor (328ft.) and 300 meters outdoor (948ft.) *
3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n
Interface	1 x 10/100/1000Mbps Auto-MDIX Gigabit LAN port
Access Control	64 MAC Address Filter Entries
LED Indicator	Wireless, LAN, WPS, Power
Buttons	Reset button – restores factory default settings WPS button – enables WPS function On/off power (EU version)
Power	12V DC 1A power adapter
Power Consumption	4.5 watts (max)
Dimensions (LxWxH)	120 x 84 x 24 mm (4.7 x 3.3 x 1.0 in.)
Weight	160 g (5.6 oz.)
Temperature	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -20° ~ 60° C (-4° ~ 140° F)
Humidity	Max. 90% (non-condensing)
Certifications	CE, FCC
Wireless
Frequency	2.412 ~ 2.472 GHz
Antenna	3 x 2dBi detachable antennas
Data Rate (auto fallback)	802.11b: up to 11Mbps 802.11g:up to 54Mbps 802.11n: up to 450Mbps
Output Power	802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n : 15dBm (typical)
Receiving Sensitivity	802.11b: -84dBm (typical) 802.11g: -72dBm (typical) 802.11n: -69dBm (typical)
Encryption	64/128-bit WEP , WPA/WPA2-PSK, WPA/WPA2-RADIUS
Channels	1~11 (FCC), 1~13 (ETSI)

TEW-690AP
CD-ROM (Utility and User’s Guide)
Multi-Language Quick Installation Guide
1 x Cat. 5 Ethernet cable (0.6 m / 2 ft.)
Power adapter (12V DC, 0.5A)
