Intelligent 1000Base-T to 1000Base-LX Single-Mode SC Fiber Converter (50km/31miles)
TFC-1000S50 (Version C1.0R)

SC-type single-mode fiber port connects over distances of up to 50km (31 miles)
1000Base-T Gigabit copper port supports Full-Duplex mode
Supports port level SNMP management
Functions as a stand alone converter or with the TFC-1600 fiber chassis

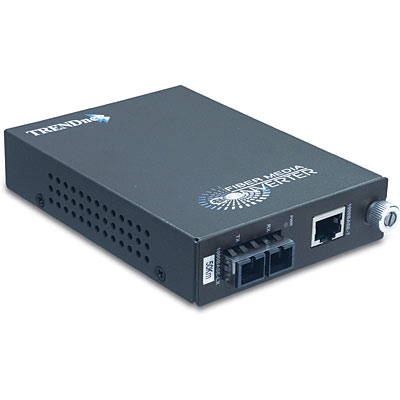

Click on image to enlarge

The TFC-1000S50 Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP and spans distances up to 50km (31miles). Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC-Type) port.

Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards
1 x 1000Base-T RJ-45 port
1 x 1000Base-LX single-mode SC type fiber port
Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (link Loss Return) for Fiber port
Monitor and configure Ethernet or Fiber’s duplex mode, LLR, port on/off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power and Link/Activity
Wall mountable
Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
3-year limited warranty

Hardware
Standard	IEEE802.3ab 1000Base-T, IEEE 802.3z 1000Base-LX
Supported Frame Size	Standard Ethernet up to 10Kbytes
Network Media	1000Base-T : Cat. 6 EIA/TIA-568 100-ohm UPT/STP, up to 100m 1000Base-LX : Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 50km
Protocol	CSMA/CD
Ports	1 x 1000Base-T 1 x 1000Base-LX (SC-type)
Dip Switch	Fiber (forced/auto-negotation), LLR (enable/disable)
Transfer Rate	2000Mbps (full-duplex)
Diagnostic LED	Per Unit : power Per Port : link/activity
Power Adapter	7.5V DC, 1A external power adapter
Power Consumption	2.7 Watts (max)
Dimensions	120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)
Weight	354g (12.5oz)
Temperature	Operating : 0° ~ 40° C (32° ~ 104° F) Storage : -25° ~ 70° C (-13° ~ 158° F)
Humidity	Max. 90% (non-condensing)
Certification	CE, FCC

Model Name	Media	Wavelength	Pout (dBm)	Sensitivity	Power	Distance
TFC-1000S50	SMF	1550nm	-4 ~ +1	-23 ~ -3	19	50m

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Informazioni supplementari

E-mail ad un amico

Scheda Tecnica

Downloads

Registra il tuo prodotto

Contenuto della confezione

TFC-1000S50
Multi-Language Quick Installation Guide
Power Adapter (7.5V, 1A)
