Intelligent 10/100Base-TX to 100Base-FX Single Mode SC Fiber Converter
TFC-110S15i (Version A1.1R)

SC-type single-mode fiber port connects over distances of up to 15km (9.3miles)
10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
Supports port level SNMP management
Functions as a stand alone converter or with the TFC-1600 fiber chassis

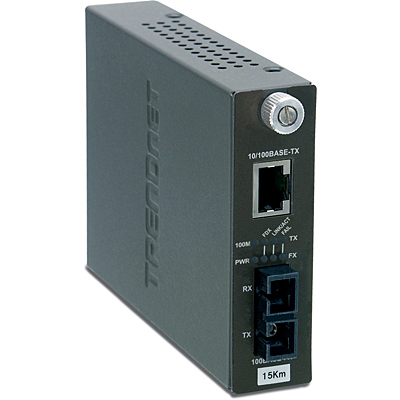

Click on image to enlarge

The TFC-110S15i Intelligent Fiber Converter works with the TFC-1600 chassis system or as standalone unit. This converter is a Single Mode SC-Type fiber converter that supports SNMP management and spans distances of up to 15km (9.3 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).

Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto MDIX for 10/100Base-TX port and one 100Mbps fiber port with single-mode SC-type connector
Provides Dip switch to set: Fiber (FDX/HDX), Ethernet (Forced/Auto-Negotation), Ethernet Speed (10M/100M), LLR (Enable/Disable), LLCF (Enable/Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (link Loss Return) for FX port
Monitor and configure Ethernet or Fiber’s duplex mode, speed, LLCF, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power, Link/Activity, Full-Duplex, Link Fail, and Speed
Wall mountable
Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
3-year limited warranty

Hardware
Standard	IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size	Standard Ethernet up to 1522byte
Network Media	100Base-TX : Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m 100Base-FX : Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 15km
Protocol	CSMA/CD
Ports	1 x 10/100Base-TX 1 x 100Base-FX (SC-type)
Dip Switch	TX: duplex mode, forced/auto negotiation, speed FX: duplex mode LLR (enable/disable) LLCF (enable/disable)
Transfer Rate	100Mbps (half-duplex) 200Mbps (full-duplex)
Diagnostic LED	Per Unit : power Per Port : link/activity, full-duplex/collision, link fail, speed (on fiber port)
Power Adapter	7.5V DC, 1A external power adapter
Power Consumption	2 Watts (max)
Dimensions	120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)
Weight	354g (12.5oz)
Temperature	Operating : 0° ~ 40° C (32° ~ 104° F) Storage : -25° ~ 70° C (-13° ~ 158° F)
Humidity	Max. 90% (non-condensing)
Certification	FCC,CE

Model Name	Media	Wavelength	Pout (dBm)	Sensitivity	Power	Distance
TFC-110S15i	SMF	1310nm	-20 ~ 0	-32 ~ 0	12	15km

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Informazioni supplementari

E-mail ad un amico

Scheda Tecnica

Downloads

Registra il tuo prodotto

Contenuto della confezione

TFC-110S15i
Multi-Language Quick Installation Guide
Power Adapter (7.5V, 1A)
