Release Date: 9/2013
Utility Version: v7.1 Build 0101
WinPcap Version: v4.1.3
OS Compatibility: Windows® 8.1 (32/64-bit), 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Notes:
- Added compatibility for Windows® 8/8.1
*Prerequisite: Requires Microsoft® .NET Framework 2.0. Please refer to the Microsoft download center for details on downloading and installing .NET Framework 2.0
***To start the installation, double click the file "Installer_CD.bat***
Dateiname: Utility_Powerline(v7.1.0101).zip
SHA-1 Checksum: 764C84BB70A7ED416094EBF79A2E91F70CB97023
Datum
7/28/2017
Dateigröße
6.52 MB
Version: 1.0.0-06
Date: 12/2012
Note:
- Erste Ausgabe
Dateiname: FW_TPL-407E_v1.0R(1.0.0-06).zip
SHA-1 Checksum: 073A90FC8AA7A80F19B6421A2D332E644495DEC9
Datum
7/28/2017
Dateigröße
2.01 MB
Dateiname: EN_spec_TPL-407E(v1.0R).pdf
Datum
8/26/2015
Dateigröße
176.86 KB
Dateiname: FR_spec_TPL-407E(v1.0R).pdf
Datum
8/26/2015
Dateigröße
189.19 KB
Dateiname: GE_spec_TPL-407E(v1.0R).pdf
Datum
8/26/2015
Dateigröße
975.58 KB
Dateiname: PO_spec_TPL-407E(v1.0R).pdf
Datum
8/26/2015
Dateigröße
187.15 KB
Dateiname: SP_spec_TPL-407E(v1.0R).pdf
Datum
8/26/2015
Dateigröße
974.26 KB
Dateiname: RU_spec_TPL-407E(v1.0R).pdf
Datum
8/26/2015
Dateigröße
991.66 KB
Dateiname: IT_spec_TPL-407E(v1.0R).pdf
Datum
8/26/2015
Dateigröße
968.97 KB
Dateiname: EUNL_Web_TPL-407E_407E2K(V1.0R).pdf
Datum
10/12/2012
Dateigröße
658.78 KB
Dateiname: Web_TPL-407E_407E2K(V1.0R).pdf
Datum
10/12/2012
Dateigröße
1.73 MB
Dateiname: UG_TPL-407E_E2K(v1.0R).pdf
Datum
10/12/2012
Dateigröße
1.65 MB
JPEG Image
Dateigröße: 320.54 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 218.94 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 212.98 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 214.63 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 348.57 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 260.60 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 258.32 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 214.63 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 359.67 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 265.79 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 253.96 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 254.28 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 292.42 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 236.70 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 257.81 KB
Datum: 8/7/2013
Download
JPEG Image
Dateigröße: 259.81 KB
Datum: 8/7/2013
Download
JPEG Image
Dateigröße: 376.84 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 379.80 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 378.39 KB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 374.08 KB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 13.04 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 8.66 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 19.36 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 19.95 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 13.15 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 10.17 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 11.05 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 11.27 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 12.94 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 10.53 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 10.52 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 11.05 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 11.30 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 9.28 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 9.10 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 9.70 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 3.87 MB
Datum: 1/8/2013
Download
JPEG Image
Dateigröße: 3.96 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 3.94 MB
Datum: 1/8/2013
Download
TIFF Image
Dateigröße: 3.86 MB
Datum: 1/8/2013
Download
Please reference the items below if you continue to experience difficulty with installing and using your Powerline adapters.
Power-cycle the Powerline adapters by disconnecting them from their power outlets for 20 seconds and then reconnect them.
If the Powerline (PL) LED is red, try pluggin...
We do not recommend any more than 8 total TPL-407E adapters on a single network.
Please reference page 11 of the User's Guide. The User's guide is located on the CD that was included with the product. You can also download it from our website here.
https://www.TRENDnet.com/downloads/list_subcategory.asp?SUBTYPE_ID=1588
...
Please reference page 7 of the User's Guide. The User's Guide is located on the CD that was included with the product. You can also download it from our website here.
https://www.TRENDnet.com/downloads/list_subcategory.asp?SUBTYPE_ID=1588
...
Reset the TPL-407E/E2K Push and hold the reset/sync button for 20 seconds, then release. The default network ID is HomePlugAV.
...
Ensure you do not have the TPL-407E/E2K units connected to surge protectors or to any outlet with appliances. Please also ensure the units are connected to outlets within the same circuit breaker box. Reset the units and ensure they are configured with the same Network ID or use the sync button t...
Hardware |
Standards | - IEEE 1901, HomePlug® AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u
|
Schnittstelle | - 1 x 10/100 Mbit/s Auto-MDIX RJ-45 port

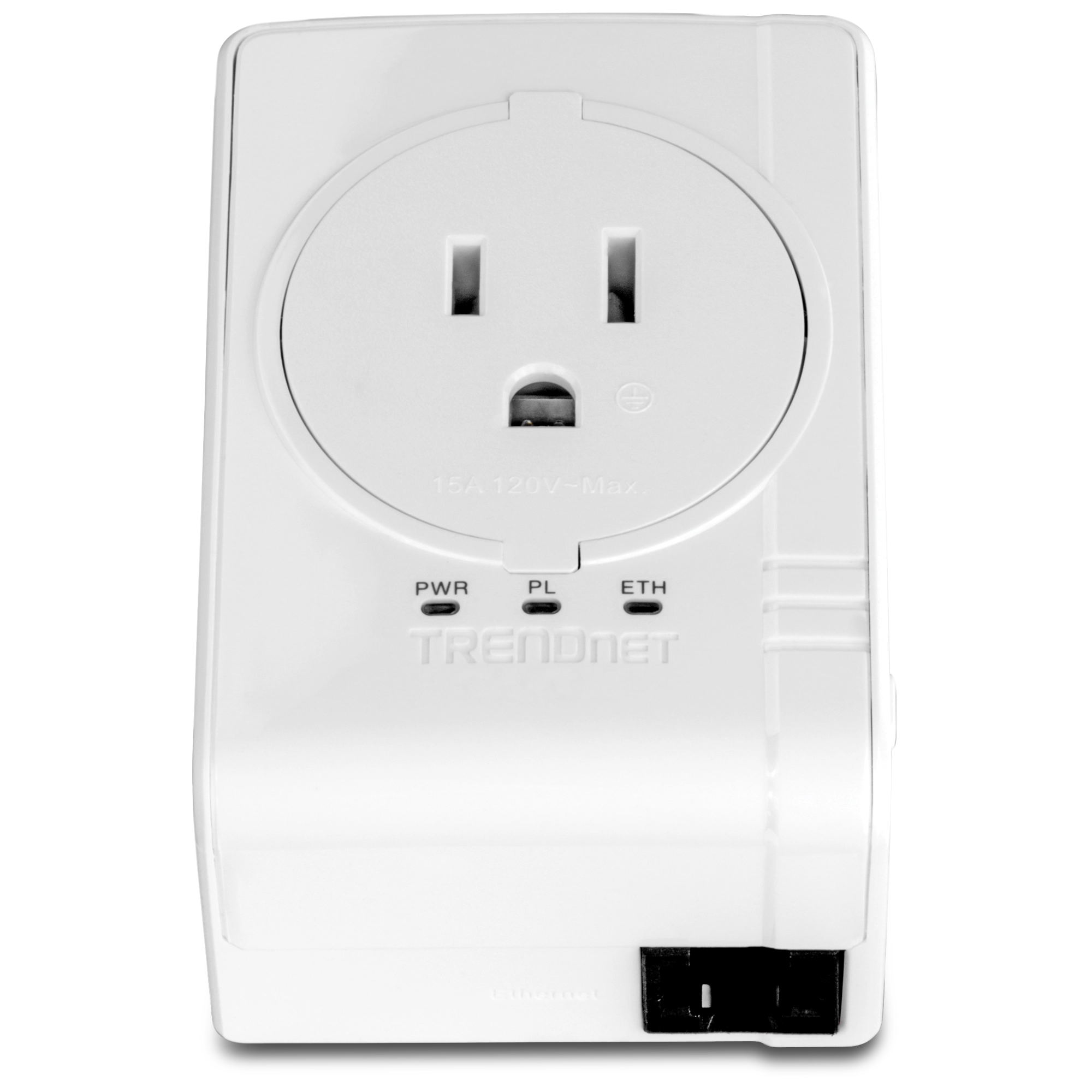

- A: Nordamerikanische Ausführung B (NEMA 5–15) (max. 15 A bei 120 V AC)
- EU: Europäische Ausführung F (CEE 7/7) (16A max. @ 250 V AC)
- FEU/FR: Französische Ausführung E (CEE 7/7) (16 A max. @ 250 V AC)

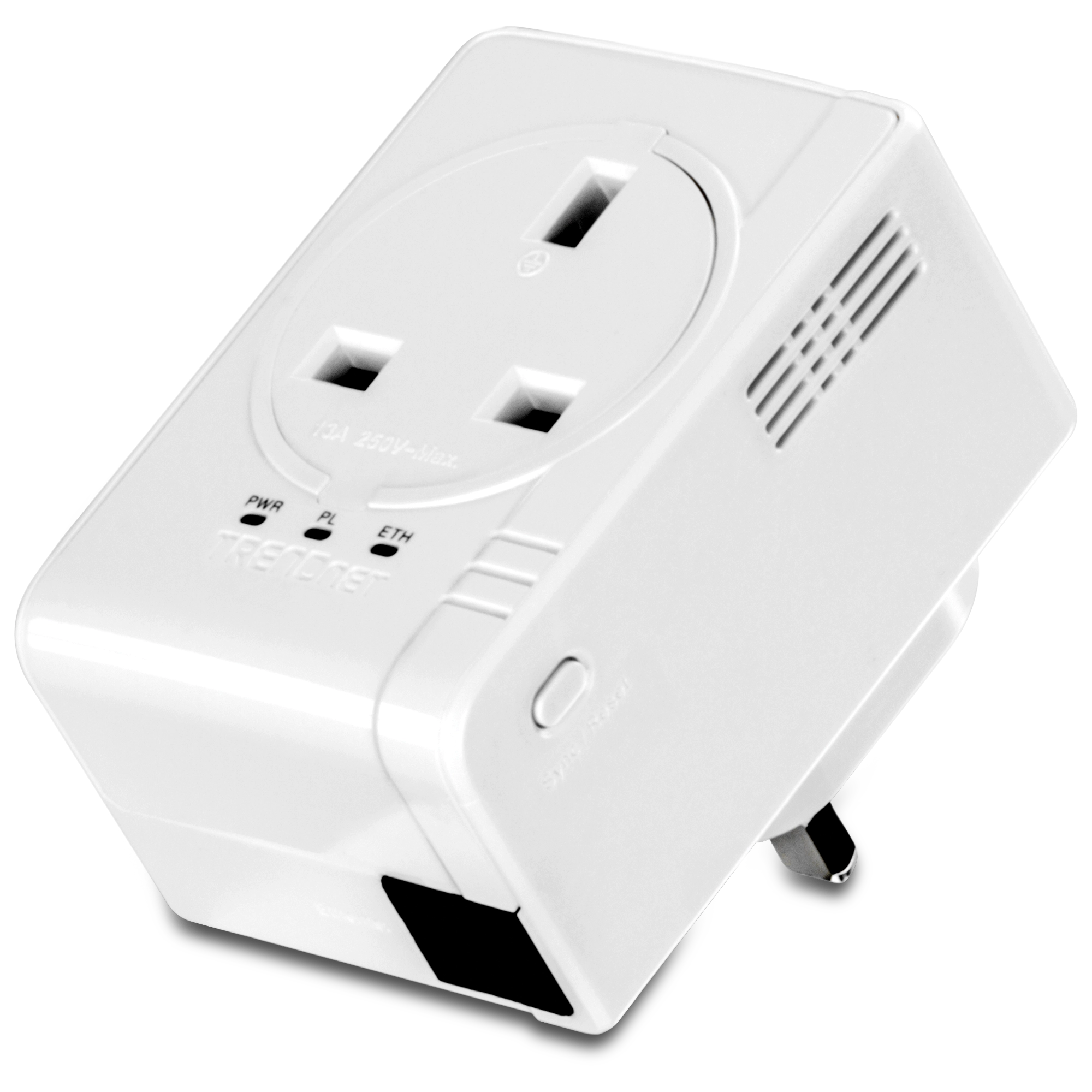

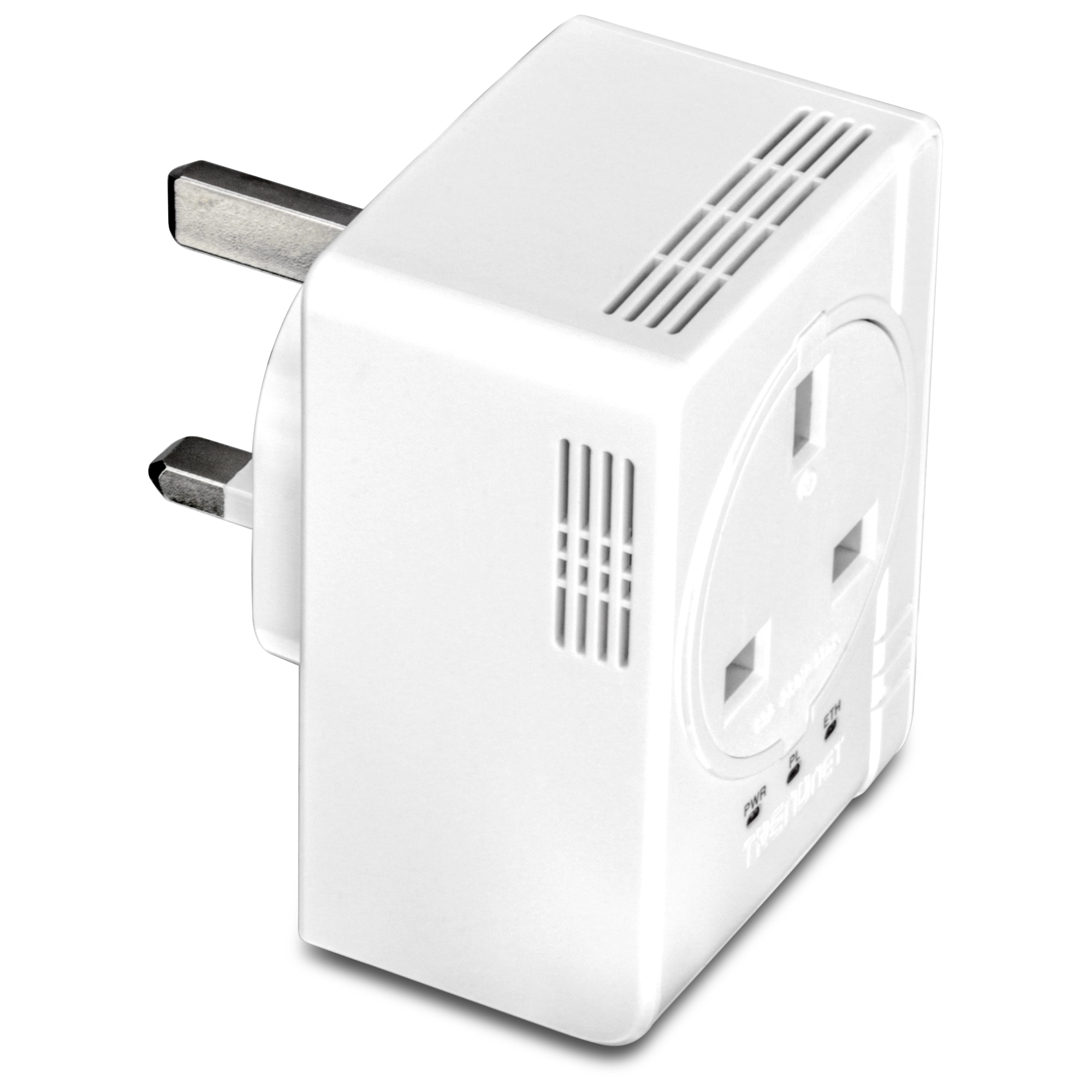

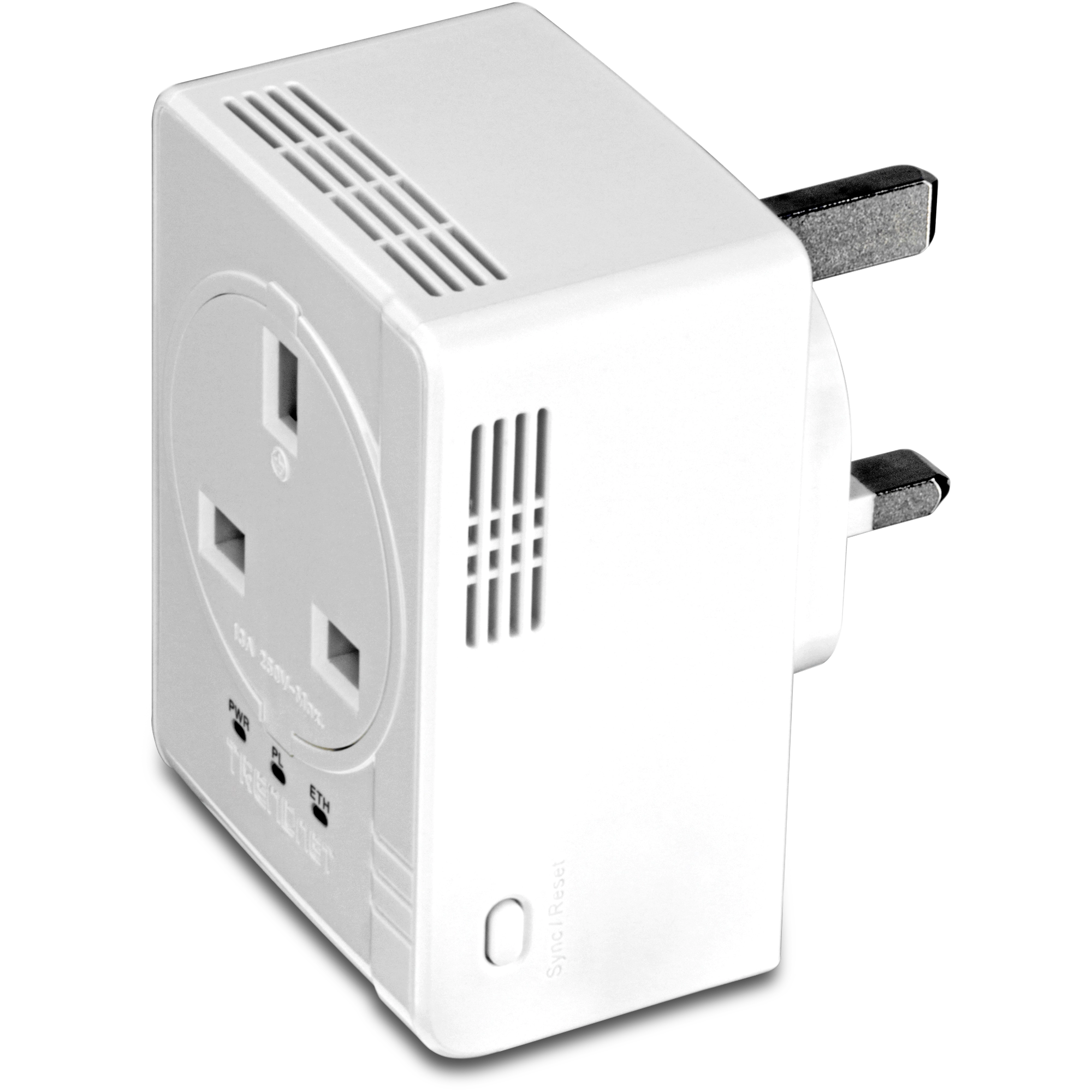

- UK: Britische Ausführung G (BS 1363) (13A max. @ 250 V AC)
- 1 x Synch-/ Rücksetz-Taste
- Power prong
- A: Nordamerikanische Ausführung B (NEMA 5–15)
- EU: Europäische Hybrid-Ausführung E/F (CEE 7/7)
- FEU/FR: Französische Hybrid-Ausführung E/F (CEE 7/7)
- UK : Britische Ausführung G (BS 1363)
|
Frequenzband | |
Modulationen | - OFDM Symbolmodulation bei Verbindungs-Synchronisation, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
|
Protokoll | |
Geschwindigkeit | - Powerline: Bis zu 500 MBit/s **
- Ethernet: Bis zu 200 MBit/s (Vollduplexmodus)
|
Kompatibilität mit Betriebssystem | - Windows® 8.1, 8, 7, Vista und XP
|
Geräte | |
Überlappende Powerline-Netzwerke | - Bis zu 4 (pro elektrischem System)
|
Abdeckung | |
Sicherheit | - 128-Bit AES (Fortgeschrittener Verschlüsselungsstandard)
|
LED | - Stromversorgung (PWR)
- Powerline-Verbindung (PL)
- Grün (Am besten)
- Gelb (Besser)
- Rot (Gut )
- Aus (Keine Verbindung)
- Ethernet-Verbindung (ETH)
- Leuchtet (Verbindung)
- Blinkt (aktivität)
- Aus (keine Verbindung)
|
Taste | - Synch (3 Sekunden)/Rücksetzen (20 Sekunden)
|
Abmessungen (B x T x H) | - A: 78 x 55 x 59 mm (3.07 x 2.17 x 2.32 zoll)
- EU: 78 x 55 x 77 mm (3.07 x 2.17 x 3.03 zoll)
- FEU/FR: 78 x 55 x 75 mm (3.07 x 2.17 x 2.95 zoll)
- UK: 78 x 55 x 68 mm (3.07 x 2.17 x 2.68 zoll)
|
Gewicht | - A: 102 g (3.6 unzen)
- EU: 138 g (4.87 unzen)
- FEU/FR: 138 g (4.87 unzen)
- UK: 134 g (4.73 unzen)
|
Stromversorgung | |
Verbrauch | - Aktiver Modus: 3 Watts (max.)
- Bereitschaftsmodus: 0.5 Watts (max.)
|
Temperatur | - Umgebung für Betrieb: 0° ~ 40°C (32° ~ 104°F)
- Lagerung: -10° ~ 55°C (14° ~ 131°F)
|
Feuchtigkeit | - Max 95% (nicht kondensierend)
|
Zulassungen | |
PACKUNGSINHALT |
- TPL-407E
- Anleitung zur Schnellinstallation
- CD-ROM (Dienstprogramm & Bedienungsanleitung)
- Netzwerkkabel (1.5 m / 5 ft.)
|
* Für Videoübertragungen im Netzwerk sind maximal 8 Adapter (Knoten) zu empfehlen.
** 500 MBit/s ist die maximal mögliche Datenübertragungsrate. Der tatsächliche Datendurchfluss kann je nach Umgebung, Qualität Stromkabel, Anzahl Stromkreise, Art und Anzahl im Kreis angeschlossener Verbrauchsgeräte davon abweichen. Vernetzte Powerline-Geräte müssen verschlossen werden in Steckdosen, die auf dem gleichen elektrischen Systems sind. GFCI Steckdosen und AFCI Stromkreisunterbrecher schwächen u.U. die Powerline-Netzwerksignale ab.
Alle erwähnten Geschwindigkeiten dienen ausschließlich dem Vergleich. Produktspezifikationen, Größe und Form unterliegen unangekündigten Änderungen, und das tatsächliche Aussehen des Produkts kann von dieser Beschreibung abweichen.
