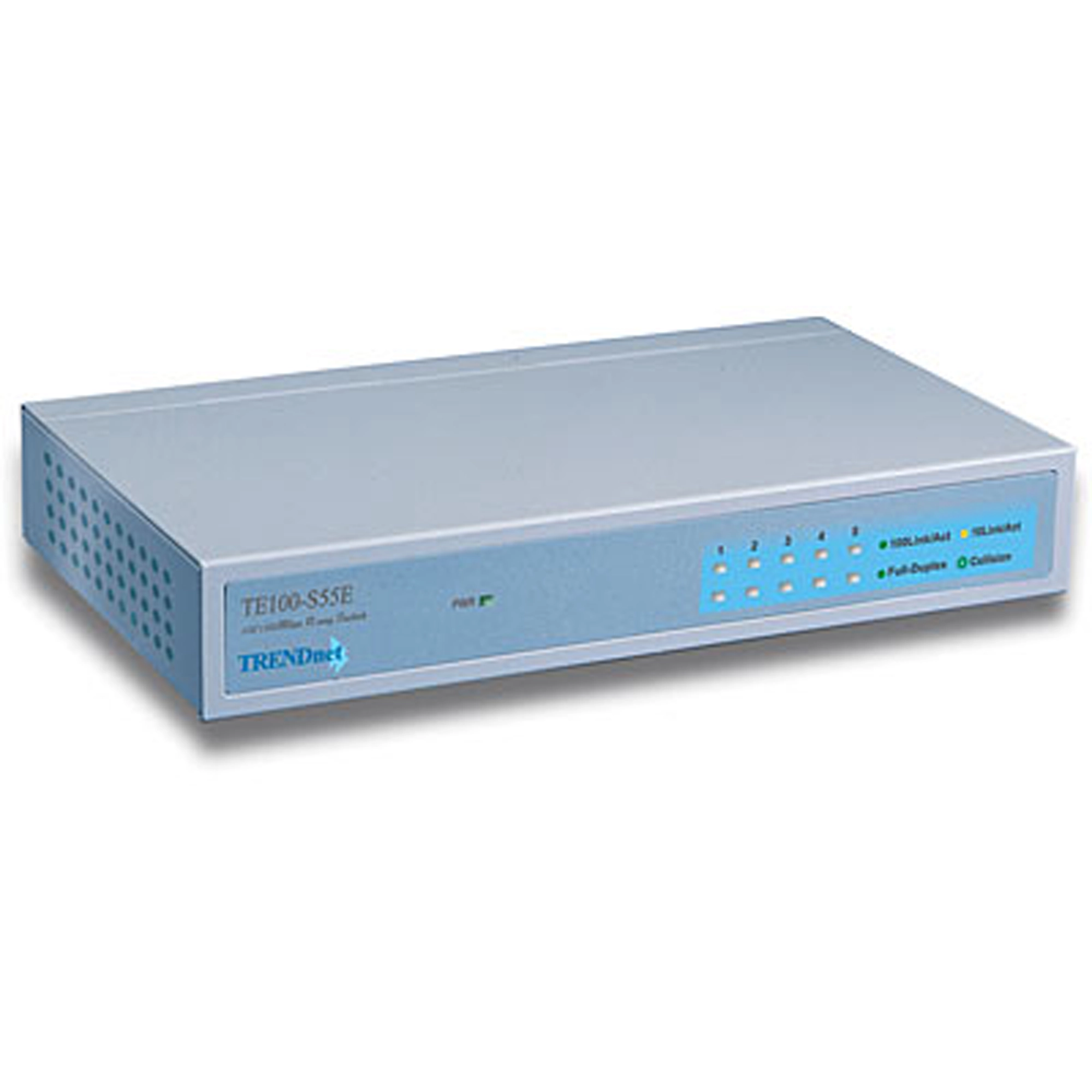

5-Port 10/100Mbps N-Way Ethernet Switch

TE100-S55E

  • 5-port palm-sized 10/100Mbps N-way Ethernet switch presents the perfect choice for small workgroups for any desktop space
  • It allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidth, boost response time and satisfy heavy load demands
  • This unique card provides a 5-year warranty

DISCONTINUED PRODUCT

The TE100-S55E  has been discontinued. For a list of discontinued products, click here.

Datasheet

Datasheet
Filename: Spec_TE100-S55E.pdf
Date: 5/2/2013
File Size: 188.63 KB
Download Email

User's Guide

Manual
Filename: UG_TE100-S55E.pdf
Date: 8/20/2004
File Size: 138.11 KB
Download
Hardware
Standards:
  • IEEE 802.3 for 10Base-T Ethernet, IEEE 802.3µ for 100Base-TX Fast Ethernet. ANSI/IEEE 802.3µ N-way auto-negotiation
Data Transfer Rate:
  • 10/100Mbps (20/200Mbps in full-duplex mode)
Protocol:
  • CSMA/CD
Connectors:
  • 5 UTP/STP RJ-45
Network Media:
  • UTP CAT 3, 4, 5 (100m) for 10Base-T, EIA/TIA-568 100-ohm STP (100m) for 10Base-T/100Base-TX, UTP CAT 5 (100m) for 100Base-TX
Packet Forwarding Rate:
  • 10Base-T: 14,880 ppp per port (half-duplex)
  • 100Base-TX/100Base-FX: 148,800 pps per port (half-duplex)
Topology:
  • Star
Diagnostic LEDs:
  • Power, Link/Activity, Collision/Full-duplex, and 10/100Mbps status
Power:
  • External power supply (Max. power consumption: 18 W)
Dimensions:
  • 171 x 100 x 28 mm (6.73 x 3.94 x 1.1 inches)
Weight:
  • 460 g (1.15 lbs.)
Temperature:
  • Operating: 0° to 50° C
  • Storage: -20° to 70° C
Humidity:
  • Operating: 10% to 90% RH
  • Storage:5% to 90% RH
Certifications:
  • FCC, UL, CE, CSA, C-tick, VCCI

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
