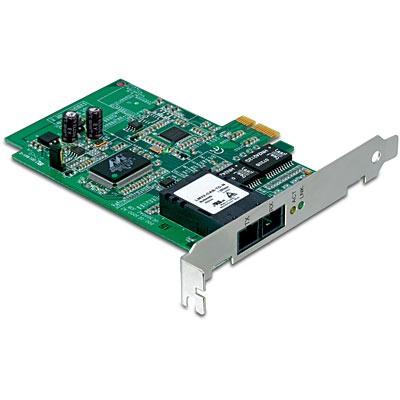

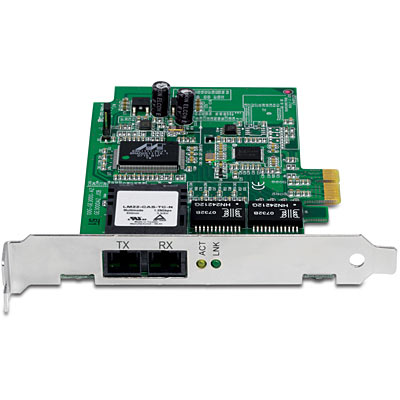

Gigabit Fiber PCI Express Adapter
TEG-ECSX (Version v1.1R)

Gigabit SC-type Multi-Mode Fiber networking adapter spans distances up to 550m (1804ft)
Data rates of up to 2Gbps over a high performance PCI Express architecture
Supports SNMP v1, PXE and RPL
Control VLAN Tagging and Layer 2 Priority Tagging
Energy savings with ACPI 2.0 functionality

Click on image to enlarge

The Gigabit Fiber PCI Express Adapter is a high performance fiber network adapter that supports advanced management and power saving functionality and connects Multi-Mode fiber devices at distances of up to 550m (1804ft).

Full-Duplex technology generates data rates of up to 2Gbps over a motherboard’s high-speed PCI Express Bus architecture. Jumbo Frame support further optimizes throughput performance.

Supports SNMP v1, Pre-Boot Execution Environment (PXE) 2.1 and Remote Program Load (RPL). Optimize network performance with VLAN tagging and Layer 2 Priority Tagging. Optimizes power consumption with advanced Configuration Power Management Interface 2.0 (ACPI) technology.

1 x 1000Base-SX SC-type Multi-Mode fiber port
PCI Express 1.0a compliant
Incorporates Advanced Configuration Power Management Interface (ACPI) 2.0
TCP segmentation / large send offload
IEEE 802.1Q VLAN tagging and IEEE 802.1p Layer 2 priority tagging
IEEE 802.3x full-duplex Flow Control
Microsoft NDIS5 (IP, TCP, UDP) checksum offload
SNMP v1 supported
Preboot eXecution Environment (PXE) 2.1 and Remote Program Load (RPL)
Jumbo Frames up to 7K
Intuitive cable diagnostic utility
3-year limited warranty

Hardware
Standards	IEEE 802.3z 1000Base-SX IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p
Network Media	1000Base-SX: 50/125μm Multi-Mode fiber optic cable, up to 550m 62.5/125μm Multi-Mode fiber optic cable, up to 220m
Protocol	SNMP v1
Interface	PCI Express / Multi-Mode SC-type port
Wavelength	850nm
Power Consumption	2.3 watts (max)
Diagnostic LED	Link, activity
Supported OS	Windows 2000/2000 Server/XP(32/64-bit)/2003 Server/Vista (32/64-bit)/Windows 7 (32/64-bit) Novel NetWare Server 3.12, 4.1, 4.11, 5.x / 6.x Linux Kernel 2.4.x / 2.6.x
Jumbo Frames	7K (vista), 4K (XP/2000/2003 Server, Linux, Novel)
Data Rate	2000Mbps (full-duplex)
Dimension	109 x 83mm (4.3 x 3.3in)
Weight	80g (2.88oz)
Temperature	Operating: 0° C~ 45° C (32° F~ 113° F) Storage: -10° C~ 70° C (14° F~ 158° F)
Humidity	5%~95% (non-condensing)
Certifications	CE, FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TEG-ECSX
Multi-Language Quick Installation Guide
CD-ROM(Drivers & User’s Guide)
