10/100Mbps PCI Adapter
TE100-PCIWN (Version 2.xR)

Seamlessly surf the Internet and share data rich content
Double your network speed to 200Mbps with full duplex technology
Easy Plug and Play installation

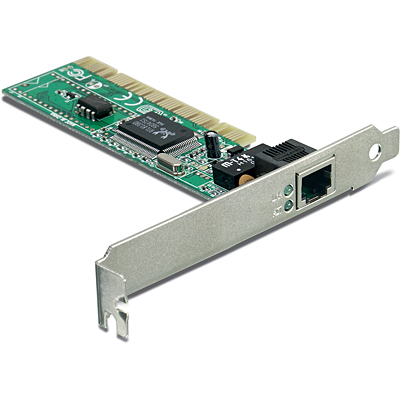

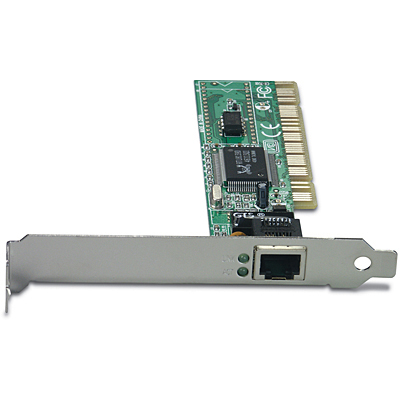

Click on image to enlarge

TE100-PCIWN is a 10/100MbpsFast Ethernet Plug-and-Play PCI adapter. Utilizes the latest chipset technology and provides easy installation. Automatic sense and connects to Fast Ethernet network with a RJ-45connector. With TRENDnet adapter, your desktop will turn into a high-bandwidth graphic and multimedia workstation or a power server running at full-duplex speed.

Compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
Supports 32-bit PCI bus master specification Rev 2.1/2.2
Supports 10/100Mbps auto-negotiation
Supports advanced power saving mode
Half or full-duplex flow control
Compatible with Windows 7/Vista/XP/2000/ME/98(SE) operating systems
Supports Magic Packet™ remote wake-up method – Wake-on-LAN
Supports ACPI, PCI power management
Diagnostic LEDs
Plug & play
3-year limited warranty


Hardware
Standard	IEEE 802.3 10Base-T, IEEE 802.3μ 100Base-TX ANSI/IEEE 802.3Auto-Negotiation IEEE 802.3xFull-Duplex Flow Control
Interface	32-bitPCI BUS Rev 2.1/2.2
Protocol	CSMA/CD
Network Media	Ethernet: UTP/STP CAT3, 4, 5 EIA/TIA-568 100-ohm Fast Ethernet: UTP/STP CAT5, EIA/TIA-568 100-ohm
Data Transfer Rate	10Mbps:10/20Mbps (Half/Full-duplex) 100Mbps:100/200Mbps (Half/Full-duplex)
Diagnostic LED	Link, Activity
Network Drivers	Windows 7 (32/64-bit) / Vista (32/64-bit) /XP (32-bit)/2003 server/NT/ 2000 /98(SE) /95 Novell NetWare ODI, NDIS, SCO UNIX, Linux, LAN Manager
Temperature	Operating:0° C ~ 50° C (32° F ~ 122° F) Storage:-20° C ~ 70° C (-4° F ~ 158° F)
Humidity	Operating:10 % to 90 % non-condensing Storage:5 % to 90 % non-condensing
Certifications	CE,FCC

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Email a Friend

Datasheet

Quick Installation Guide

Downloads

Package Contents

TE100- PCIWN
Multi-language quick installation guide
CD-ROM (Drivers)
