Product Families » Switches » GBIC / Mini-GBIC » TEG-MGBS40D35

Mini-GBIC Dual Wavelength Single-Mode LC Module 1310/1550 Pair
TEG-MGBS40D35 (Version 1.0R)

Pair of included Mini-GBIC modules must be used together
LC connector-type dual wavelength mode for distances up to 40km
Designed to connect with a standard Mini-GBIC slot

DISCONTINUED PRODUCT

The TEG-MGBS40D35 (Version 1.0R) has been discontinued. It has been replaced by the TEG-MGBS40D3 (Version v4.0R). For a list of discontinued products, click here.

Click on image to enlarge

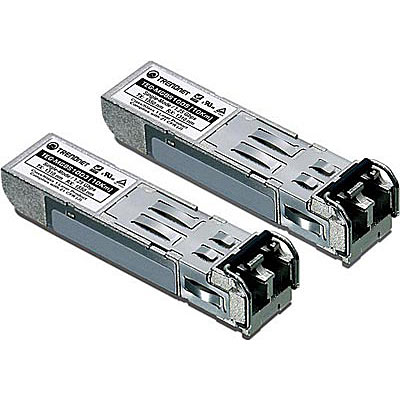

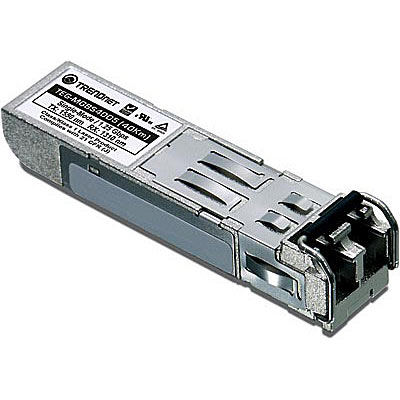

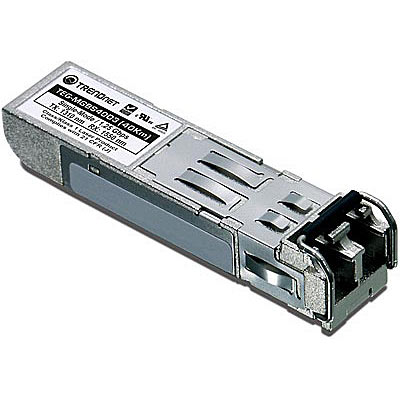

The pair of Mini-GBIC Single-Mode module works with standard Mini-GBIC slots on most switches. The pair of Dual Wavelength Single-Mode LC Type modules must be used together in order to span distances up to 40km (24.9 miles). Two modules are included, each with 1 x 1000Mbps-LX (Simplex LC Type) Mini-GBIC connector.

Compliant with IEEE 802.3z Gigabit Ethernet and Fiber Channel Standards
Compliant with SFP MSA, SONET/SDH standards, Class 1 laser products, EN 60825, and EN60950
Metal Enclosure, low EMI
Simplex LC connector
Hot Pluggable and Low Power Dissipation
Single 3.3V Power Supply Voltage
3-year limited warranty

Model Name	Wavelength	Power Budget	Sensitivity	Power	Distance
TEG-MGBS10D3	TX: 1310nm RX: 1550nm	11dBm	-20	-9 ~ -3 dBm	10km
TEG-MGBS10D5	TX: 1550nm RX: 1310nm	11dBm	-20	-9 ~ -3 dBm	10km
TEG-MGBS40D3	TX: 1310nm RX: 1550nm	20dBm	-23	-3 ~ +3 dBm	40Km
TEG-MGBS40D5	TX: 1550nm RX: 1310nm	23dBm	-23	-3 ~ +3 dBm	40Km
Application Metro Access Rings Point-to-Point Networking Suitable for Fast Ethernet and OC-12 3-years limited warranty

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
