100Base-TX to 100Base-FX Multi Mode ST Fiber Converter
TFC-110MST

ST type multi-mode fiber port connects over distances of up to 2km
10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
Functions as a stand alone converter or with the TFC-1600 fiber chassis

DISCONTINUED PRODUCT

The TFC-110MST has been discontinued. It has been replaced by the TFC-110MST (Version v3.2R). For a list of discontinued products, click here.

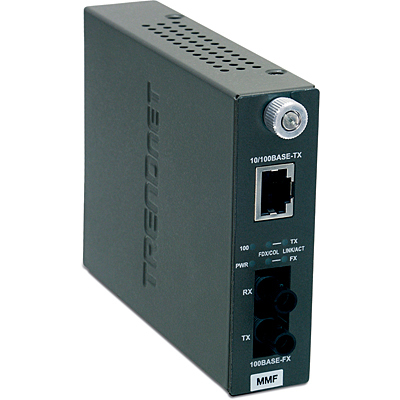

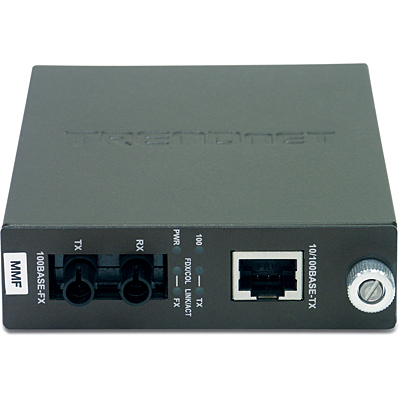

Click on image to enlarge

The TFC-110MST Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode ST-Type fiber converter spanning distances up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (ST-Type).

Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards
One 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port
One 100Mbps fiber port with Multi-mode ST-Type Connector
Half / Full-Duplex mode selector on Fiber port
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Wall-Mountable
Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
3-year limited warranty


Hardware
Standards:	IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size:	Standard Ethernet up to 1522-Byte
Network Media:	100Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters. 100Base-FX: Multi-Mode fiber optic cable 50/125 or 62.5/125 µm, up to 2 Km.
Wavelength:	1300nm
Protocol:	CSMA/CD
Ports:	1 x 10/100Base-TX 1 x 100Base-FX
Data Transfer Rate:	100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
Diagnostic LEDs:	Power, Link/Activity, Full-Duplex, and Speed
Power Adapter:	7.5VDC, 1.5A (7.2 watts max.)
Temperature:	Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity:	Operating: 10% ~ 90% Storage: 5% ~ 90% (non-condensing)

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.
