Single Channel PoE Analog to IP Video Encoder
TV-VS1P (Version v1.0R)

Provides advanced IP-based functionality to an analog CCTV security camera
View a CCTV camera from any Internet connection and on compatible mobile phones
No need to install this device near a power source, power and data are received through a single Ethernet cable
Motion detection recording, email alerts, and alarm triggers
Schedule recording sessions to a server with Samba client support

SecurView IP Camera Critical
Firmware Update Available

Click on image to enlarge

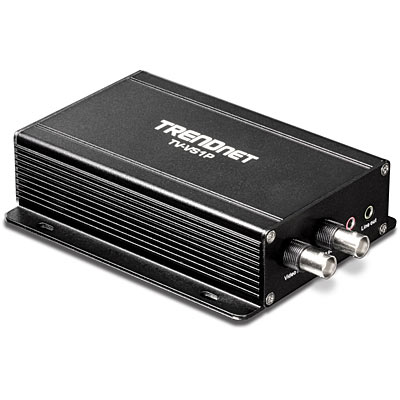

TRENDnet's Single Channel PoE Analog to IP Video Encoder, model TV-VS1P, provides advanced IP-based security camera functionality to a traditional analog CCTV camera.

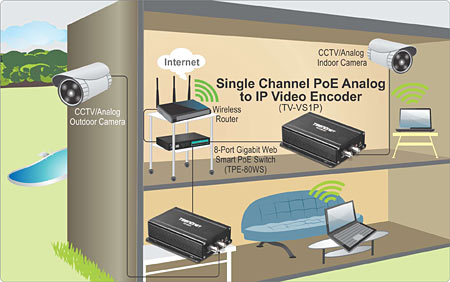

Convert analog video to digital; view video over any internet connection; record video to a server; and manage motion detection recording and email alerts. No need to install this device near a power source, power and data are received through a single Ethernet cable.

The TV-VS1P converts analog video to resolutions of up to 704 x 480 pixels (4CIF) at 30 frames per second for H.264, MPEG-4, or MJPEG compressed video. Two-way audio support facilitates audio recording and two-way communications. Remote Pan/Tilt/Zoom and Auto Patrol is supported for Pelco D compliant PTZ cameras. Advanced features include motion detection recording, email alerts, scheduled recording sessions, 3GPP support, Samba client support, Input/Output ports to network to alarm systems, date-and-time and other text overlays, mask overlays to conceal sensitive areas, an SD card slot, and digital zoom. This compact device can be mounted on most surfaces.

IEEE 802.3af PoE compliant device

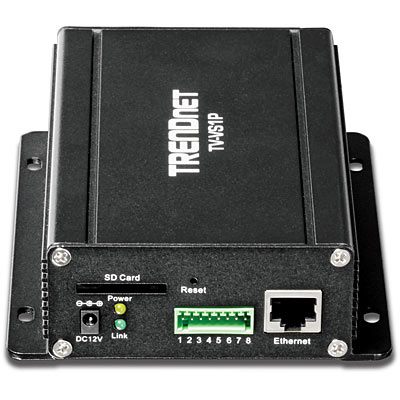

1 x 10/100Mbps PoE Auto-MDIX RJ-45 port
Optional power port for non-PoE installations
SD/SDHC card slot *

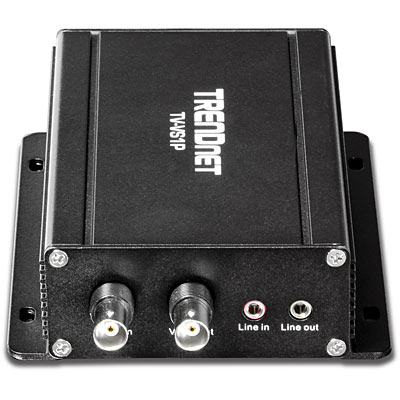

BNC video out and video in connectors
Audio support: built-in Audio jacks for additional 3rd party microphone and speaker
Input/Output ports (GPIO) to network to alarm systems
Diagnostic Power and Link LEDs
Four installation mounting points
3x digital zoom
Pelco D and Pelco P pan/tilt/zoom support: Define Auto-Patrol pan tilt with up to 32 viewing nodes
High quality H.264, MPEG-4, and MJPEG video recording
Resolution up to 704 x 576 pixels and up to 30 frames per second (fps)
Stream Internet camera video to a 3GPP compatible wireless device
Dynamic DNS support
Images controls: brightness, saturation, contrast, Hue ,and Wide Dynamic Range Correction (WDRC)
Time, date, and other text overlays
Mask overlays conceal sensitive areas
Supports TCP/IP networking, SMTP Email, HTTP, and other Internet protocols
Recording type: continuous, schedule, or motion detection
Record streaming video to your computer or Network Storage device with Samba support
Three motion detection windows with just-in-time snapshot , motion detection triggered email alerts, and image upload to FTP
Event trigger: motion detection or Input/Output signal
Event response: email alert, instant snapshot, or video recording
Send instant messages to Jabber client via Jabber Server
Supports Quality of Service (QoS) with Differentiated Services Code Point (DSCP)
Quick Universal Plug and Play (UPnP) installation
3-year limited warranty

* SD/SDHC card sold separately

General
Video	Video In: CVBS / 1 Vp-p±0.2 / 75 Ohms ; BNC connecter Video Out: CVBS /1 Vp-p /75 Ohms; BNC connecter
Audio	Line Input: 3.5mm jack (CCTP audio) Line Output: 3.5mm jack (Speaker) S/N Ratio: < 60dB Format: PCM/AMR 2 Way audio supported
GPIO	Ground, GPIO in/out, DV12V output, RS485 TX+/TX-
SD Slot	Supports SD/SDHC (up to 32GB)
Pan/Tilt/Zoom	Protocol: Pelco D and Pelco P 32 presets Auto Patrol
Hardware
Network	IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX IEEE 802.3af PoE
LED	Power, Link
Reset Button	Push and release to reboot Push and hold for 5 seconds to restore to factory default
Power Consumption	7 Watts
Power	12V, 1.5A external power adapter (for non-PoE installation)
Dimension	160 x 109 x 36 mm (6.3 x 4.3 x 1.4 in.)
Weight	445 g (15.7 oz.)
Temperature	Operating: 0°C ~ 45°C (32°F ~ 113°F) Storage: -15°C ~ 60°C (5°F ~ 140°F)
Humidity	Max. 85% (non-condensing)
Certifications	CE, FCC
Requirement
Management Interface	Internet Explorer 6.0 or above
To run Utility	Windows 7(32/64-bit), Vista(32/64-bit), XP(32/64-bit)
Network Protocols	TCP/IP, IPv4/IPv6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
Management
Remote	Remote management supported
Backup / Restore	Save/retrieve configuration files
Settings
Image	Brightness, contrast, saturation, mirror (horizontal/vertical)
Video Encoder	Encoding type: H.264, MPEG4, MJPEG Resolution/frame rate(auto-sensing) 704 x 480, 352 x 240, 176 x 120, up to 30 fps (NTSC) 704 x 576, 352 x 288, 176 x 144, up to 25 fps (PAL) Compression: 5 levels
Recording	Recording type: continuous, schedule, or motion detection
Port Settings	HTTP port: 80 (default), RTSP (554)
Digital Zoom	3x
Dynamic DNS	Yes
Time	Synchronize with NTP server or set time/date manually
SMTP	Supported up to 2 destination accounts
System Log	100 items

Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice.

Additional Info

Critical Firmware update available

Email a Friend

Datasheet

Quick Installation Guide

Downloads

View Knowledgebase

View Emulator

Package Contents

TV-VS1P
Multi-language Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Network cable (1.8 m / 6 ft.)
GPIO Connector
Audio and cable (3.5 mm)
Power adapter (12 VDC, 1.5 A)
Mounting accessories
